Texas Instruments SN74xx Standard Logic Gates & Flip-Flops Series

Complete part list, parametric comparisons, and Shenzhen spot inventory for the SN74xx Standard Logic Gates & Flip-Flops family.

Part Number (MPN)	Package / Case	Description	Inventory Status	Action
SN7414NSR	14-SOIC (0.209", 5.30mm Width)	Texas Instruments 74LS14 series hex Schmitt-trigger inverter, SN7414NSR, 6 circuits, 4.75-5.25V supply, 14-SOIC (0.209", 5.30mm width), surface mount, Tape & Reel.	In stock · 3-day delivery	Details
SN74AC00DR	14-SOIC (0.154", 3.90mm Width)	Texas Instruments 74AC series NAND Gate, SN74AC00DR, 4 circuits, 2 inputs, 14-SOIC surface mount, 2V ~ 6V supply, -40°C ~ 85°C.	In stock · 3-day delivery	Details
SN74ACT08PW	14-TSSOP (0.173", 4.40mm Width)	Texas Instruments 74ACT series AND Gate, SN74ACT08PW, 4-circuit 2-input, 14-TSSOP package, 4.5V to 5.5V supply, 24mA output, -40°C to 85°C.	In stock · 3-day delivery	Details
SN74ACT14N	14-DIP (0.300", 7.62mm)	Texas Instruments 74ACT series, SN74ACT14N hex Schmitt-trigger inverter, 6 circuits, 1 input per circuit, 14-DIP (0.300", 7.62mm) through-hole package, 4.5V to 5.5V supply, -40°C to 85°C operating temperature.	In stock · 3-day delivery	Details
SN74ACT14NS	14-SOIC (0.209", 5.30mm Width)	Texas Instruments 74ACT series, SN74ACT14NS hex inverter with Schmitt-trigger inputs, 6 circuits, 1 input per circuit, 4.5V to 5.5V supply, 24mA output drive, 14-SOIC package, tube.	In stock · 3-day delivery	Details
SN74ACT7200L25NP	28-DIP (0.300", 7.62mm)	Texas Instruments SN74ACT7200L25NP asynchronous FIFO, 256 x 9 (2.25 Kbit), 25 ns access time, 28.5 MHz data rate, 28-pin DIP (0.300"), through-hole, Bulk.	In stock · 3-day delivery	Details

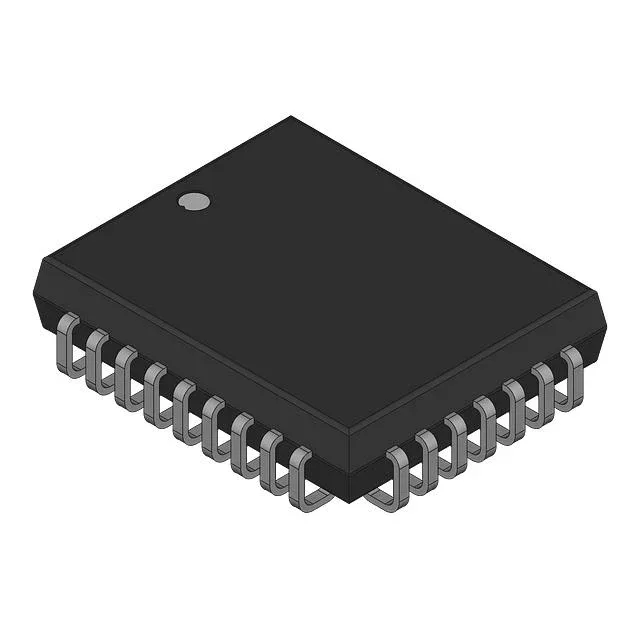

SN74ACT7201LA35RJ	32-LCC (J-Lead)	Texas Instruments SN74ACT7201LA35RJ asynchronous FIFO memory, 4.5K (512 x 9), 35 ns access time, 22.22 MHz data rate, 4.5-5.5 V supply, 32-PLCC (J-Lead), Bulk.	In stock · 3-day delivery	Details
SN74AHC02DR	14-SOIC (0.154", 3.90mm Width)	Texas Instruments 74AHC series NOR Gate, 4-circuit 2-input, SN74AHC02DR, 14-SOIC surface mount, 2V to 5.5V supply, -40°C to 125°C, 8mA output, 8.5ns propagation delay.	In stock · 3-day delivery	Details
SN74AHC132N	14-DIP (0.300", 7.62mm)	Texas Instruments 74AHC series, NAND Gate, 4-circuit, 2-input, Schmitt Trigger, Through Hole, 14-DIP (0.300", 7.62mm), 2V ~ 5.5V supply, -40°C ~ 85°C.	In stock · 3-day delivery	Details
SN74AHC14DRG3	14-SOIC (0.154", 3.90mm Width)	Texas Instruments 74AHC series hex Schmitt-trigger inverter, SN74AHC14DRG3, 6 circuits, 2V-5.5V supply, 14-SOIC package, -40°C to 125°C.	In stock · 3-day delivery	Details
SN74AHCT00DBR	14-SSOP (0.209", 5.30mm Width)	Texas Instruments 74AHCT series quad 2-input NAND gate, SN74AHCT00DBR, 14-SSOP package, 4.5-5.5 V supply, 7.9 ns propagation delay at 5 V, 50 pF.	In stock · 3-day delivery	Details

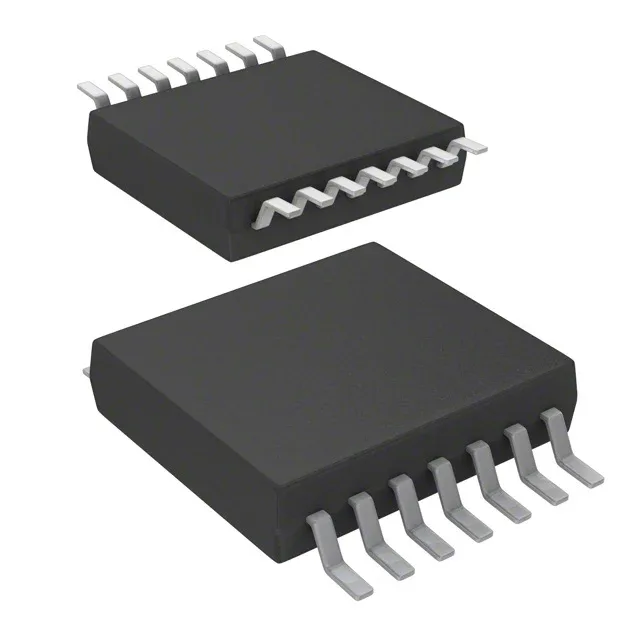

SN74AHCT04DGVR	14-TFSOP (0.173", 4.40mm Width)	Texas Instruments 74AHCT series hex inverter, SN74AHCT04DGVR, 14-TVSOP package, 4.5V-5.5V supply, 8mA output drive, -40°C to 125°C.	In stock · 3-day delivery	Details
SN74AHCT138PW	16-TSSOP (0.173", 4.40mm Width)	Texas Instruments 74AHCT series decoder/demultiplexer, SN74AHCT138PW, 1 x 3:8 circuit, 4.5V ~ 5.5V supply, 8mA output drive, 16-TSSOP package, -40°C ~ 85°C.	In stock · 3-day delivery	Details
SN74AHCT540DGVR	20-TFSOP (0.173", 4.40mm Width)	Texas Instruments 74AHCT series Buffer, Inverting, 3-State output, SN74AHCT540DGVR, 4.5V to 5.5V supply, 8mA output drive, 20-TVSOP surface mount package.	In stock · 3-day delivery	Details
SN74ALS00ANSR	14-SOIC (0.209", 5.30mm Width)	Texas Instruments 74ALS series quad 2-input NAND gate, SN74ALS00ANSR, 14-SOIC (0.209", 5.30mm Width), surface mount, 4.5V~5.5V supply, 11ns propagation delay.	In stock · 3-day delivery	Details
SN74ALS02AN	14-DIP (0.300", 7.62mm)	Texas Instruments 74ALS series, Quad 2-Input NOR Gate, Through Hole, 14-DIP (0.300", 7.62mm), 4.5V ~ 5.5V supply, 0°C ~ 70°C, 12ns @ 5V, 50pF.	In stock · 3-day delivery	Details
SN74ALS04BNSR	14-SOIC (0.209", 5.30mm Width)	Texas Instruments 74ALS series hex inverter, SN74ALS04BNSR, 6 circuits, 1-input, 14-SOIC (0.209", 5.30mm width), surface mount, 4.5V to 5.5V supply, 11ns propagation delay at 5V/50pF.	In stock · 3-day delivery	Details
SN74ALS09D	14-SOIC (0.154", 3.90mm Width)	Texas Instruments 74ALS series, SN74ALS09D quad 2-input AND gate, open-collector outputs, 14-SOIC (0.154", 3.90mm Width), surface mount, 4.5-5.5 V supply, 0°C to 70°C.	In stock · 3-day delivery	Details
SN74AUP1G06DCKR	5-TSSOP, SC-70-5, SOT-353	Texas Instruments 74AUP series single inverter with open-drain output, SC-70-5 package, 0.8V to 3.6V supply, 500 nA quiescent current, 4 mA sink capability, -40°C to 85°C operating range.	In stock · 3-day delivery	Details
SN74AUP1G06DCKT	5-TSSOP, SC-70-5, SOT-353	Texas Instruments 74AUP series single inverter with open-drain output, SN74AUP1G06DCKT, SC-70-5 package, 0.8 V to 3.6 V supply, 500 nA quiescent current, -40°C to 85°C.	In stock · 3-day delivery	Details
SN74CB3Q3244PWR	20-TSSOP (0.173", 4.40mm Width)	Texas Instruments 74CB series Bus Switch, SN74CB3Q3244PWR, 4 x 1:1 circuit, 2 independent circuits, 2.3V ~ 3.6V supply, -40°C ~ 85°C, 20-TSSOP, Surface Mount.	In stock · 3-day delivery	Details
SN74CBT16211ADGVR	56-TFSOP (0.173", 4.40mm Width)	Texas Instruments 74CBT Bus Switch, SN74CBT16211ADGVR, 12 x 1:1 circuit, 2 independent circuits, 4.5V to 5.5V supply, 56-TVSOP package, Tape & Reel.	In stock · 3-day delivery	Details
SN74CBT3305CPW	8-TSSOP (0.173", 4.40mm Width)	Texas Instruments 74CBT series Bus Switch, SN74CBT3305CPW, 2 independent 1:1 circuits, 4.5V-5.5V single supply, 8-TSSOP surface-mount package, -40°C to 85°C operating range.	In stock · 3-day delivery	Details
SN74F38D	14-SOIC (0.154", 3.90mm Width)	Texas Instruments 74F series NAND gate, SN74F38D, quad 2-input, open-collector outputs, 14-SOIC (0.154", 3.90mm width), tube package.	In stock · 3-day delivery	Details
SN74F38NSR	14-SOIC (0.209", 5.30mm Width)	Texas Instruments 74F series quad 2-input NAND gate, open-collector outputs, 14-SOIC (5.30 mm width), 4.5-5.5 V supply, 0-70 °C.	In stock · 3-day delivery	Details
SN74HC02NS	14-SOIC (0.209", 5.30mm Width)	Texas Instruments 74HC series quad 2-input NOR gate, SN74HC02NS, 14-SOIC (0.209", 5.30mm width) surface-mount package, 2V to 6V supply, -40°C to 85°C, ROHS3 compliant.	In stock · 3-day delivery	Details
SN74HC05D	14-SOIC (0.154", 3.90mm Width)	Texas Instruments 74HC series hex inverter, open-drain outputs, 14-SOIC surface-mount package, 2V to 6V supply, 5.2 mA sink current, 20 ns propagation delay.	In stock · 3-day delivery	Details
SN74HC05PWR	14-TSSOP (0.173", 4.40mm Width)	Texas Instruments 74HC series hex inverter, SN74HC05PWR, 6 circuits, open-drain outputs, 2V-6V supply, 14-TSSOP package, tape and reel.	In stock · 3-day delivery	Details
SN74HC138QPWRQ1	16-TSSOP (0.173", 4.40mm Width)	Texas Instruments SN74HC138QPWRQ1, Automotive AEC-Q100 74HC series, 1 x 3:8 Decoder/Demultiplexer, 2V-6V supply, 5.2mA output, -40°C to 125°C, 16-TSSOP package.	In stock · 3-day delivery	Details
SN74HC14QDRG4Q1	14-SOIC (0.154", 3.90mm Width)	Texas Instruments Automotive, AEC-Q100, 74HC series, SN74HC14QDRG4Q1, hex Schmitt-trigger inverter, 6 circuits, 1-input, 14-SOIC package, 2V to 6V supply, -40°C to 125°C operating temperature.	In stock · 3-day delivery	Details
SN74HC42D	16-SOIC (0.154", 3.90mm Width)	Texas Instruments 74HC series BCD-to-decimal decoder, 1 x 4:10 circuit, 16-SOIC (0.154", 3.90mm Width) surface-mount package, 2V to 6V single-supply, -40°C to 85°C operating temperature.	In stock · 3-day delivery	Details
SN74HC7001D	14-SOIC (0.154", 3.90mm Width)	Texas Instruments 74HC series quad 2-input AND gate, Schmitt-trigger inputs, 14-SOIC surface-mount package, 2V to 6V supply, 2 µA quiescent current, 5.2 mA output drive, 22 ns propagation delay @ 6V, -40°C to 85°C operating range, ROHS3 compliant, active production.	In stock · 3-day delivery	Details
SN74HCS08QDRQ1	14-SOIC (0.154", 3.90mm Width)	Texas Instruments Automotive, AEC-Q100, 74HCS series AND Gate, 4 circuits, 2 inputs, Schmitt Trigger Input, 14-SOIC, Tape & Reel, SN74HCS08QDRQ1.	In stock · 3-day delivery	Details
SN74HCS11QDRQ1	14-SOIC (0.154", 3.90mm Width)	Texas Instruments Automotive, AEC-Q100, 74HCS series, triple 3-input AND gate, Schmitt-trigger inputs, 14-SOIC (0.154", 3.90mm Width), surface mount, Tape & Reel.	In stock · 3-day delivery	Details
SN74HCS14BQAR	14-QFN Exposed Pad	Texas Instruments 74HCS series hex inverter with Schmitt trigger inputs, SN74HCS14BQAR, 2V-6V supply, 6 circuits, 14-QFN exposed pad package, -55°C to 125°C.	In stock · 3-day delivery	Details
SN74HCS266QDRQ1	14-SOIC (0.154", 3.90mm Width)	Texas Instruments 74HCS series Automotive AEC-Q100 XNOR gate, SN74HCS266QDRQ1, quad 2-input, Schmitt-trigger inputs, 2V-6V supply, 14-SOIC package.	In stock · 3-day delivery	Details
SN74HCT04DR	14-SOIC (0.154", 3.90mm Width)	Texas Instruments 74HCT series hex inverter, SN74HCT04DR, 14-SOIC surface mount, 4.5V-5.5V supply, 4mA output, -40°C to 85°C.	In stock · 3-day delivery	Details
SN74LS165AN	16-DIP (0.300", 7.62mm)	Texas Instruments 74LS series, Parallel or Serial to Serial Shift Register, 8-bit, 1 Element, 16-DIP (0.300", 7.62mm), Through Hole, Tube, SN74LS165AN.	In stock · 3-day delivery	Details
SN74LS20N	14-DIP (0.300", 7.62mm)	Texas Instruments 74LS series NAND Gate, SN74LS20N, dual 4-input, 14-DIP (0.300", 7.62mm), Through Hole, 4.75V~5.25V supply, 15ns propagation delay, 0°C~70°C.	In stock · 3-day delivery	Details
SN74LV05AD	14-SOIC (0.154", 3.90mm Width)	Texas Instruments 74LV series hex inverter, SN74LV05AD, open-drain outputs, 6 circuits, 1 input per channel, 14-SOIC package, 2V to 5.5V supply, -40°C to 85°C.	In stock · 3-day delivery	Details
SN74LV132APW	14-TSSOP (0.173", 4.40mm Width)	Texas Instruments 74LV series NAND Gate, SN74LV132APW, quad 2-input, Schmitt Trigger, 2V to 5.5V supply, -40°C to 125°C, 12mA output, 14-TSSOP tube.	In stock · 3-day delivery	Details
SN74LV20ADR	14-SOIC (0.154", 3.90mm Width)	Texas Instruments 74LV series NAND gate, SN74LV20ADR, dual 4-input, 2V-5.5V supply, 12mA output, 14-SOIC surface mount, Tape & Reel.	In stock · 3-day delivery	Details
SN74LV27APW	14-TSSOP (0.173", 4.40mm Width)	Texas Instruments 74LV series NOR Gate, SN74LV27APW, 3-circuit, 3-input, 14-TSSOP package, 2V to 5.5V supply, 12mA output drive, Tube.	In stock · 3-day delivery	Details
SN74LV32ADBR	14-SSOP (0.209", 5.30mm Width)	Texas Instruments 74LV series SN74LV32ADBR quad 2-input OR gate, 14-SSOP package, 2V to 5.5V supply, -40°C to 125°C temperature range, 7.5ns propagation delay at 5V.	In stock · 3-day delivery	Details
SN74LVC04ADT	14-SOIC (0.154", 3.90mm Width)	Texas Instruments 74LVC series hex inverter, SN74LVC04ADT, 6-circuit, 1-input, 14-SOIC surface mount, 1.65-3.6V supply, -40 to +125°C.	In stock · 3-day delivery	Details
SN74LVC08AMPWREP	14-TSSOP (0.173", 4.40mm Width)	Texas Instruments 74LVC series AND Gate, 4-channel, 2-input, 14-TSSOP package, 2V to 3.6V supply, -55°C to 125°C operating temperature, Tape & Reel.	In stock · 3-day delivery	Details
SN74LVC1G06DBVR	SC-74A, SOT-753	Texas Instruments 74LVC series SN74LVC1G06DBVR single buffer, inverting, open-drain output, 1.65V–5.5V supply, 32mA sink, SOT-23-5 package.	In stock · 3-day delivery	Details
SN74LVC1G06DRLR	SOT-553	Texas Instruments 74LVC series single inverting buffer, SN74LVC1G06DRLR, open-drain output, 1.65V-5.5V supply, 32mA sink, SOT-553 package, -40°C to 125°C.	In stock · 3-day delivery	Details
SN74LVC1G06DRYR	6-UFDFN	Texas Instruments 74LVC series single inverting buffer, open-drain output, 32 mA sink, 1.65-5.5 V supply, -40 to 125°C, 6-UFDFN package, Tape & Reel.	In stock · 3-day delivery	Details
SN74LVC1G06DSFR	6-XFDFN	Texas Instruments 74LVC series single inverting buffer, open-drain output, 1.65V-5.5V supply, 32mA sink, -40°C to 125°C, 6-XFDFN / 6-SON (1x1mm) package, SN74LVC1G06DSFR.	In stock · 3-day delivery	Details
SN74LVC1G07DCK3	5-TSSOP, SC-70-5, SOT-353	Texas Instruments 74LVC series, Buffer Non-Inverting, 1-bit, Open Drain output, 1.65V-5.5V supply, SC-70-5 package, -40°C to 125°C, SN74LVC1G07DCK3.	In stock · 3-day delivery	Details
SN74LVC1G07DRY2	6-UFDFN	Texas Instruments 74LVC series SN74LVC1G07DRY2 single buffer, non-inverting, open-drain output, 32 mA sink, 1.65 V to 5.5 V supply, -40°C to +125°C, 6-UFDFN package.	In stock · 3-day delivery	Details
SN74LVC1G07QDCKRQ1	5-TSSOP, SC-70-5, SOT-353	Texas Instruments 74LVC series, Buffer Non-Inverting, 1-bit, Open Drain, 1.65V to 5.5V, -40°C to 125°C, SC-70-5, Tape & Reel, AEC-Q100, SN74LVC1G07QDCKRQ1.	In stock · 3-day delivery	Details
SN74LVC1G07YZVR	4-XFBGA, DSBGA	Texas Instruments 74LVC series single buffer, non-inverting, open-drain output, 4-DSBGA package, 1.65V-5.5V supply, -40°C to 85°C, SN74LVC1G07YZVR.	In stock · 3-day delivery	Details
SN74LVC1G125DCK3	5-TSSOP, SC-70-5, SOT-353	Texas Instruments 74LVC series buffer, non-inverting, SN74LVC1G125DCK3, single-element, 3-state output, 32mA drive, 1.65V–5.5V supply, SC-70-5 package.	In stock · 3-day delivery	Details
SN74LVC1G125DRYR	6-UFDFN	Texas Instruments 74LVC series SN74LVC1G125DRYR single buffer, non-inverting, 3-state output, 1.65V–5.5V supply, 32mA drive, 6-UFDFN / 6-SON (1.45x1) package, tape and reel.	In stock · 3-day delivery	Details
SN74LVC1G125YZPR	5-XFBGA, DSBGA	Texas Instruments 74LVC series buffer, non-inverting, 3-state output, 1.65V to 5.5V supply, 32mA output current, 5-DSBGA (1.4x0.9) package, -40°C to 125°C, SN74LVC1G125YZPR.	In stock · 3-day delivery	Details
SN74LVC1G126YZPR	5-XFBGA, DSBGA	Texas Instruments 74LVC series SN74LVC1G126YZPR buffer, non-inverting, 3-state output, 1.65 V to 5.5 V supply, 32 mA drive, 5-DSBGA package, -40°C to 85°C.	In stock · 3-day delivery	Details
SN74LVC1G17DBVT	SC-74A, SOT-753	Texas Instruments 74LVC series single Schmitt-trigger buffer, non-inverting, push-pull output, 1.65-5.5V supply, 32mA output drive, SOT-23-5 package, Tape & Reel.	In stock · 3-day delivery	Details
SN74LVC1G17DCK3	5-TSSOP, SC-70-5, SOT-353	Texas Instruments 74LVC series single Schmitt-trigger buffer, non-inverting, push-pull output, 1.65V-5.5V supply, 32mA drive, SC-70-5 package, Tape & Reel.	In stock · 3-day delivery	Details
