MAX3232CDBR
Texas Instruments
Tape & Reel (TR); Cut Tape (CT)0°C~70°CTransceiver
Ref. price$2.1500
Lead time on requestGet quote ›
Texas Instruments MAX3 Series
24 variants · Texas Instruments
About the Texas Instruments Texas Instruments MAX3 Series series
The Texas Instruments Texas Instruments MAX3 Series series groups 24 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common data rate of 250kbps, duplex of Full and mounting type of Surface Mount. Variants differ by case, operating temperature and package, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 16-SOIC (0.154\", 3.90mm Width) · 16-SOIC (0.295\", 7.50mm Width) · 16-SSOP (0.209\", 5.30mm Width) · 16-TSSOP (0.173\", 4.40mm Width)
- Operating temperature
- -55°C~125°C · -40°C~85°C · 0°C ~ 70°C · 0°C~70°C
- Package
- Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
Variant comparison

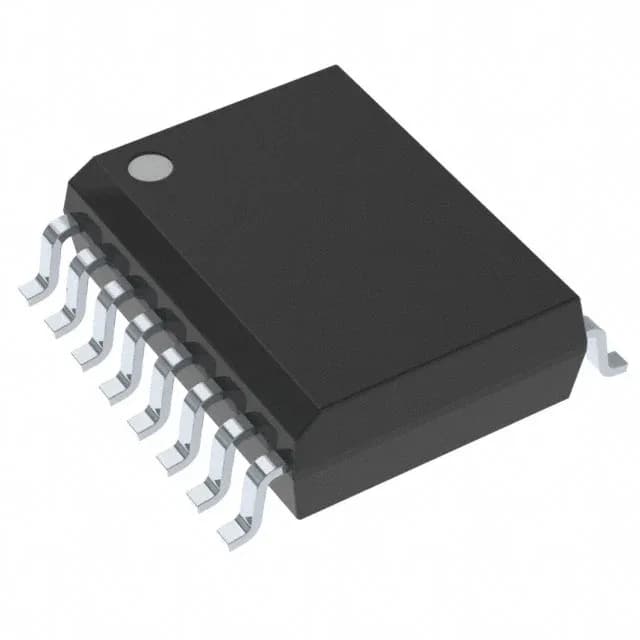

| Parameter | MAX3232CDBR | MAX3232CDR | MAX3232CPWR | MAX3232ECDWR | MAX3232EIDBR | MAX3232EIPWR |
|---|---|---|---|---|---|---|
| Case | 16-SSOP (0.209\", 5.30mm Width) | 16-SOIC (0.154\", 3.90mm Width) | 16-TSSOP (0.173\", 4.40mm Width) | 16-SOIC (0.295\", 7.50mm Width) | 16-SSOP (0.209\", 5.30mm Width) | 16-TSSOP (0.173\", 4.40mm Width) |
| Operating temperature | 0°C~70°C | 0°C~70°C | 0°C~70°C | 0°C ~ 70°C | -40°C~85°C | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) |
Shared specifications
- Data rate
- 250kbps
- Duplex
- Full
- Mounting type
- Surface Mount
- Number of drivers (Receivers)
- 2/2
- Protocol
- RS232
- Receiver hysteresis
- 300 mV
- Type
- Transceiver
- Voltage
- 3V ~ 5.5V
Request a quote on any Texas Instruments MAX3 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Texas Instruments Texas Instruments MAX3 Series variants differ?
- Texas Instruments MAX3 Series part numbers differ by case, operating temperature and package. Use the selection guide above to pick by case.
- How many Texas Instruments Texas Instruments MAX3 Series part numbers are listed?
- 24 Texas Instruments Texas Instruments MAX3 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Texas Instruments Texas Instruments MAX3 Series?
- Request a quote (RFQ) for any Texas Instruments MAX3 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
