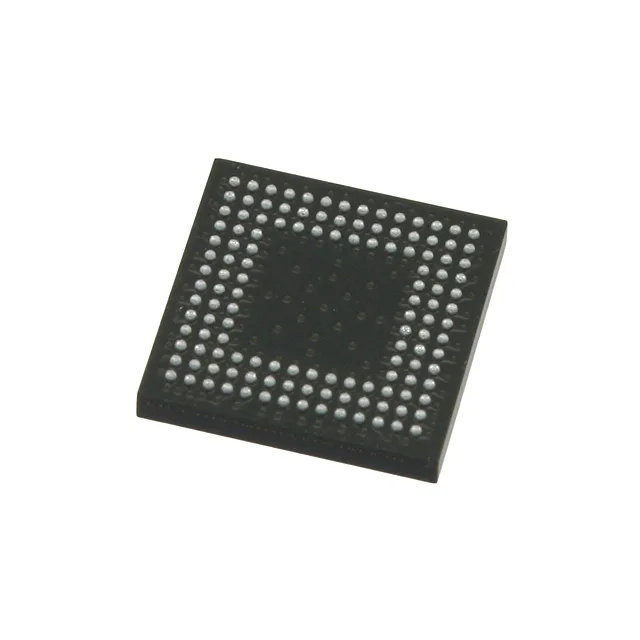

LCMXO2-4000HC-4MG132C
Lattice Semiconductor Corporation
MachXO2Tray0°C ~ 85°C (TJ)
Ref. price$17.8500
Lead time on requestGet quote
LCMXO2 MachXO2 Non-Volatile FPGA
665 variants · Lattice Semiconductor Corporation
About the LCMXO2 MachXO2 Non-Volatile FPGA
The Lattice Semiconductor Corporation LCMXO2 MachXO2 Non-Volatile FPGA series groups 665 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common mounting of Surface Mount and package of Tray. Variants differ by case, number of i (O) and number of LABs (CLBs), so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 32-UFQFN Exposed Pad · 64-VFBGA · 100-LQFP · 132-LFBGA, CSPBGA · 256-LBGA · 256-LFBGA · 332-FBGA
- Number of i (O)
- 21 · 44 · 55 · 79 · 104 · 206 · 274
- Number of LABs (CLBs)
- 32 · 160 · 264 · 540 · 858
- Number of logic elements (Cells)
- 256 · 1280 · 2112 · 4320 · 6864
- Operating temperature
- -40°C ~ 100°C (TJ) · 0°C ~ 85°C (TJ)
- Voltage
- 1.14V ~ 1.26V · 2.375V ~ 3.465V
- Total RAM bits
- 65536 · 75776 · 94208 · 245760
Shared specifications
- Mounting
- Surface Mount
- Package
- Tray
Variant comparison

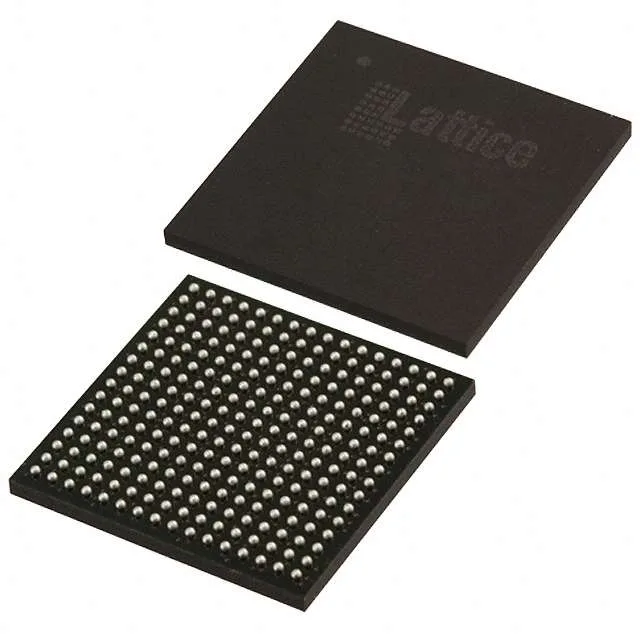

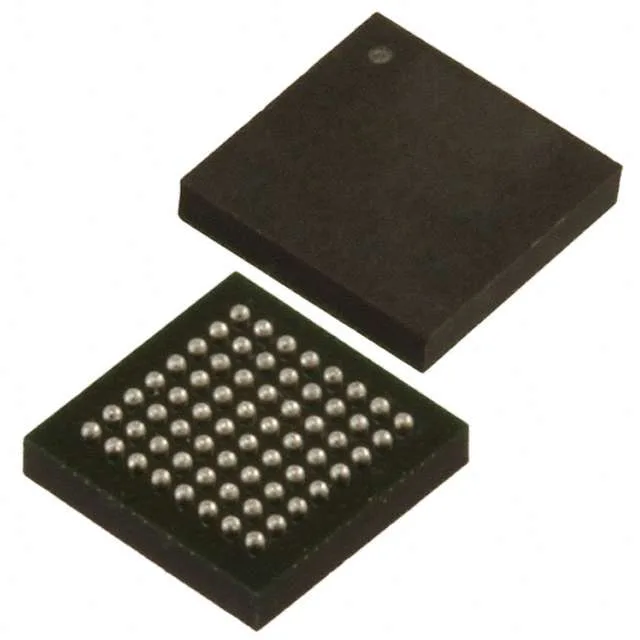

| Parameter | LCMXO2-4000HC-4MG132C | LCMXO2-1200HC-5SG32C | LCMXO2-2000HC-4FTG256C | LCMXO2-2000HC-4TG100I | LCMXO2-2000HC-5TG100C | LCMXO2-256HC-4UMG64C |
|---|---|---|---|---|---|---|
| Case | 132-LFBGA, CSPBGA | 32-UFQFN Exposed Pad | 256-LBGA | 100-LQFP | 100-LQFP | 64-VFBGA |
| Number of i (O) | 104 | 21 | 206 | 79 | 79 | 44 |
| Number of LABs (CLBs) | 540 | 160 | 264 | 264 | 264 | 32 |
| Number of logic elements (Cells) | 4320 | 1280 | 2112 | 2112 | 2112 | 256 |
| Operating temperature | 0°C ~ 85°C (TJ) | 0°C ~ 85°C (TJ) | 0°C ~ 85°C (TJ) | -40°C ~ 100°C (TJ) | 0°C ~ 85°C (TJ) | 0°C ~ 85°C (TJ) |
| Voltage | 2.375V ~ 3.465V | 2.375V ~ 3.465V | 2.375V ~ 3.465V | 2.375V ~ 3.465V | 2.375V ~ 3.465V | 2.375V ~ 3.465V |
| Total RAM bits | 94208 | 65536 | 75776 | 75776 | 75776 | — |
Request a quote on any LCMXO2 MachXO2 Non-Volatile FPGA part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
