DRV8300NIPWR
Texas Instruments
Tape & Reel (TR); Cut Tape (CT)-40°C ~ 125°C (TA)Surface Mount
Ref. price$1.7
Lead time on requestGet quote
Texas Instruments DRV8 Power Management Series
24 variants · Texas Instruments
About the Texas Instruments DRV8 Power Management Series
The Texas Instruments DRV8 Power Management Series series groups 24 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common mounting of Surface Mount. Variants differ by case, operating temperature and package, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 16-PowerTSSOP (0.173\", 4.40mm Width) · 16-WFQFN Exposed Pad · 20-TSSOP (0.173\", 4.40mm Width) · 24-TSSOP (0.173\", 4.40mm Width) Exposed Pad · 24-VFQFN Exposed Pad · 28-PowerTSSOP (0.173\", 4.40mm Width) · 28-VFQFN Exposed Pad · 36-BSSOP (0.433\", 11.00mm Width) Exposed Pad
- Operating temperature
- -40°C ~ 125°C (TA) · -40°C ~ 150°C (TJ) · -40°C~150°C(TJ)
- Package
- Tape & Reel (TR); Cut Tape (CT) · Tube
- Voltage
- 2.5V ~ 10.8V · 2.7V ~ 10.8V · 4.5V ~ 60V · 5V ~ 20V · 8.2V ~ 45V · 8.7V ~ 20V · 10.8V ~ 13.2V
- Applications
- DC Motors, General Purpose · DC Motors, General Purpose, Solenoids · General Purpose
- Interface
- Logic · PWM
- Output configuration
- Half Bridge (3) · Half Bridge (4) · Pre-Driver - Half Bridge (3)
- Technology
- NMOS · Power MOSFET
Shared specifications
- Mounting
- Surface Mount
Variant comparison

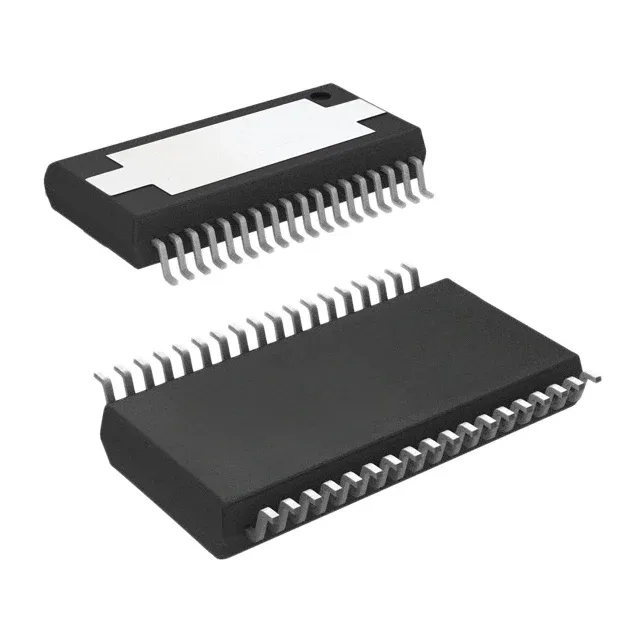

| Parameter | DRV8300NIPWR | DRV8300UDPWR | DRV8332DKD | DRV8825PWP | DRV8834RGET | DRV8833CPWPR |
|---|---|---|---|---|---|---|
| Case | 20-TSSOP (0.173\", 4.40mm Width) | 20-TSSOP (0.173\", 4.40mm Width) | 36-BSSOP (0.433\", 11.00mm Width) Exposed Pad | 28-PowerTSSOP (0.173\", 4.40mm Width) | 24-VFQFN Exposed Pad | 16-PowerTSSOP (0.173\", 4.40mm Width) |
| Operating temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 150°C (TJ) | -40°C~150°C(TJ) | -40°C~150°C(TJ) | -40°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tube | Tube | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) |
| Voltage | 5V ~ 20V | 8.7V ~ 20V | 10.8V ~ 13.2V | 8.2V ~ 45V | 2.5V ~ 10.8V | 2.7V ~ 10.8V |
| Applications | — | — | DC Motors, General Purpose | General Purpose | General Purpose | DC Motors, General Purpose, Solenoids |
| Interface | — | — | PWM | Logic | Logic | PWM |
| Output configuration | — | — | Half Bridge (3) | Half Bridge (4) | Half Bridge (4) | Half Bridge (4) |
| Technology | — | — | Power MOSFET | Power MOSFET | Power MOSFET | Power MOSFET |
Request a quote on any Texas Instruments DRV8 Power Management Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
