TPD2E001DRSR
Texas Instruments
Tape & Reel (TR) Cut Tape (CT)-40°C ~ 85°C (TA)Steering (Rail to Rail)
Ref. price$0.5300
Lead time on requestGet quote
Texas Instruments TPD2E Series
20 variants · Texas Instruments
About the Texas Instruments TPD2E Series
The Texas Instruments TPD2E Series series groups 20 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common capacitance @ frequency of - and mounting of Surface Mount. Variants differ by applications, case and current - peak pulse (10/1000μs), so you can match the exact applications your application requires using the selection guide below. All listed Texas Instruments TPD2E Series part numbers are active and orderable.
Select a variant by
- Applications
- Automotive, Ethernet · Ethernet · Ethernet, HDMI · General Purpose
- Case
- 4-XFLGA, DSLGA · 6-UFDFN · 6-WDFN Exposed Pad · SC-70, SOT-323 · SOT-553 · TO-236-3, SC-59, SOT-23-3 · TO-253-4, TO-253AA
- Current - peak pulse (10/1000μs)
- - · 1A (8/20µs)
- Operating temperature
- -40°C ~ 85°C (TA) · -40°C~85°C(TA)
- Package
- Tape & Reel (TR) · Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
- Power - peak pulse
- - · 45W
- Power line protection
- No · Yes
Shared specifications
- Capacitance @ frequency
- -
- Mounting
- Surface Mount
Variant comparison
| Parameter | TPD2E001DRLR | TPD2E001DRLRG4 | TPD2E001DRSR | TPD2E001DRST-NM | TPD2E001DRYR | TPD2E001DRYRG4 |
|---|---|---|---|---|---|---|
| Applications | Ethernet | Ethernet | Ethernet | Ethernet | Ethernet | Ethernet |

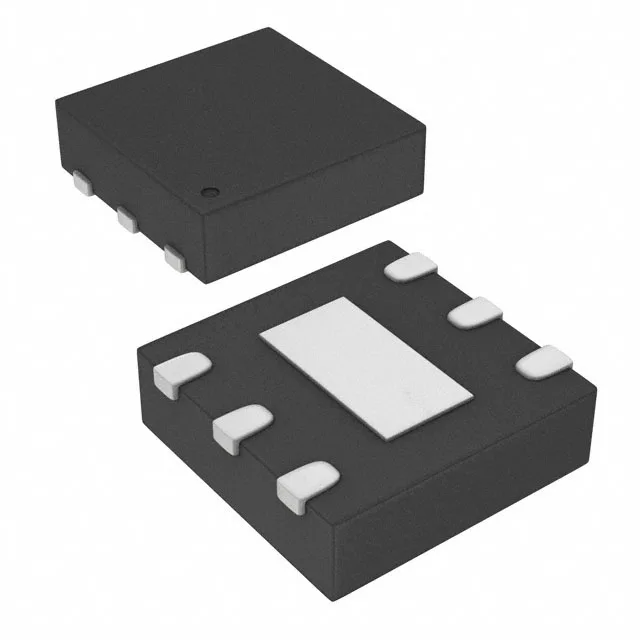

| Case | SOT-553 | SOT-553 | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad | 6-UFDFN | 6-UFDFN |
| Current - peak pulse (10/1000μs) | - | - | - | - | - | - |
| Operating temperature | -40°C ~ 85°C (TA) | -40°C~85°C(TA) | -40°C ~ 85°C (TA) | -40°C~85°C(TA) | -40°C~85°C(TA) | -40°C~85°C(TA) |
| Package | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) |
| Power - peak pulse | - | - | - | - | - | - |
| Power line protection | Yes | Yes | Yes | Yes | Yes | Yes |
Request a quote on any Texas Instruments TPD2E Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
