Texas Instruments TPD2E007YFMRG4 Zener ESD protection array, 2 bidirectional channels, 13V reverse standoff, 14V breakdown min, -40°C to 85°C, 4-DSLGA package.
| Parameter | Value |
|---|---|
| Type | Zener |
| Mounting | Surface Mount |
| Voltage - breakdown | 14V |
| Voltage - reverse standoff | 13V (Max) |
| Power line protection | No |
| Operating temperature | -40°C~85°C(TA) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Applications | General Purpose |
| Case | 4-XFLGA, DSLGA |
| Bidirectional channels | 2 |

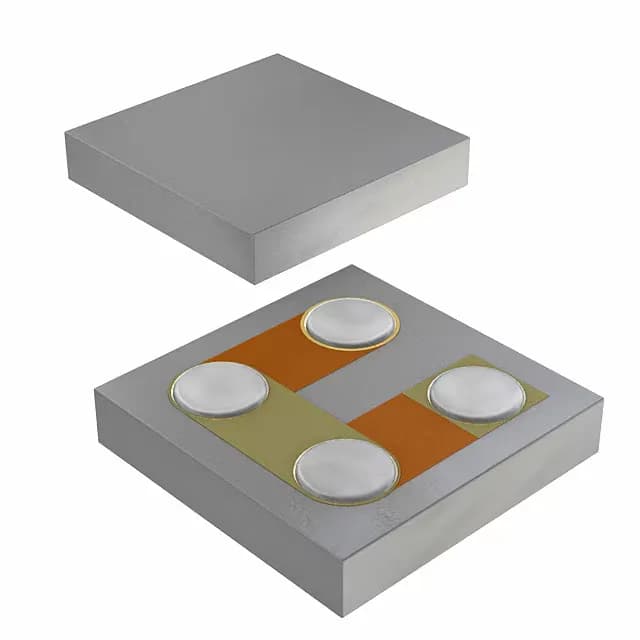

The Texas Instruments TPD2E007YFMRG4 is a two-channel bidirectional Zener-type ESD protection array in a 4-DSLGA package.
The 13V reverse standoff is the maximum voltage the protected line can carry without the Zener conducting. Once a transient exceeds 14V breakdown, the device shunts current to ground.
Housed in a 4-DSLGA package, the TPD2E007YFMRG4 is a surface-mount device. No power line protection is claimed — this is a signal-line-only clamp.
If you need a drop-in replacement, the base product number TPD2E007 covers the family; verify pinout and electrical specs against the datasheet before substituting.
