TDK Corporation — EMI Filters & Ferrite Beads

Turnkey BOM procurement and spot-buy shortage sourcing for TDK Corporation EMI Filters & Ferrite Beads — 160 part numbers with specifications and datasheets. Filter

title

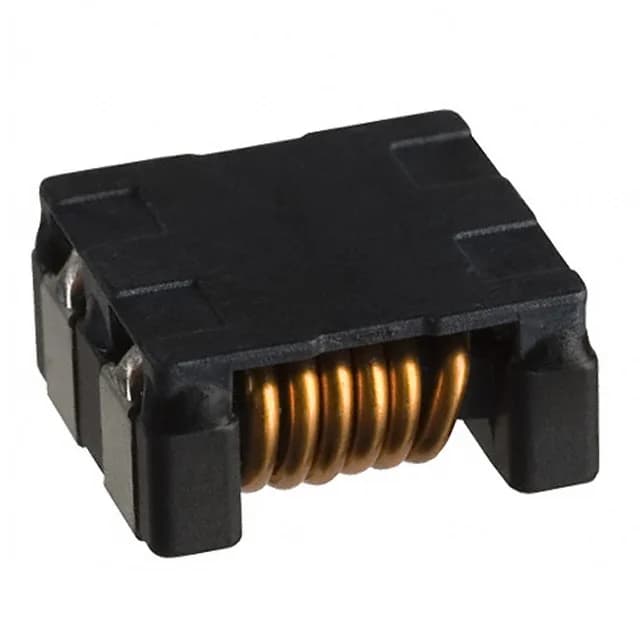

ACM1211-102-2PL-TL01 · ACM1211-701-2PL-TL01 · ACM12V-172-2PL-TL00 · ACM12V-701-2PL-TL00
Current Rating (Max)
6A · 8A · 4.8A · 10A
DC Resistance (DCR) (Max)
14mOhm · 6mOhm · 12mOhm · 4mOhm
Impedance @ Frequency
1 kOhms @ 100 MHz · 700 Ohms @ 100 MHz · 1.7 kOhms @ 100 MHz · 550 Ohms @ 100 MHz
Operating Temperature
-40°C~85°C · -40°C ~ 85°C · -40°C~125°C · -40°C ~ 125°C
Package / Case
Horizontal, 4 PC Pad · Horizontal, 4 J-Lead · 0805 (2012 Metric), 4 PC Pad · Horizontal, 4 Gull Wing
Package
Tape & Reel (TR); Cut Tape (CT) · Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR)
Size / Dimension
0.472" L x 0.433" W (12.00mm x 11.00mm) · 0.591" L x 0.512" W (15.00mm x 13.00mm) · 0.079" L x 0.047" W (2.00mm x 1.20mm)
