STPS10170CG-TR
STMicroelectronics
Tape & Reel (TR); Cut Tape (CT)Fast Recovery =< 500ns, > 200mA (Io)Schottky
Ref. price$1.6600
Lead time on requestGet quote ›
STMicroelectronics STPS Series
36 variants · STMicroelectronics
About the STMicroelectronics STMicroelectronics STPS Series series
The STMicroelectronics STMicroelectronics STPS Series series groups 36 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common speed of Fast Recovery =< 500ns, > 200mA (Io). Variants differ by case, current - average rectified (Io) (per diode) and current - reverse leakage @ vr, so you can match the exact case your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current STMicroelectronics STPS Series variants and discontinued ones from a single page.
Select a variant by
- Case
- ISOTOP · TO-220-3 · TO-252-3, DPak (2 Leads + Tab), SC-63 · TO-262-3 Long Leads, I²Pak, TO-262AA · TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Current - average rectified (Io) (per diode)
- 5A · 7.5A · 8A · 10A · 60A · 100A
- Current - reverse leakage @ vr
- 1 mA @ 45 V · 3.6 µA @ 100 V · 4.5 µA @ 100 V · 10 µA @ 120 V · 10 µA @ 170 V · 22 mA @ 12 V · 100 µA @ 45 V · 200 µA @ 45 V · 200 µA @ 170 V · 350 µA @ 60 V
- Diode configuration
- 1 Pair Common Cathode · 2 Independent
- Mounting type
- Chassis Mount · Surface Mount · Through Hole
- Operating temperature - junction
- -55°C~150°C · 150°C (Max) · 150°C(Max) · 175°C(Max)
- Package
- Tape & Reel (TR); Cut Tape (CT) · Tube
Variant comparison

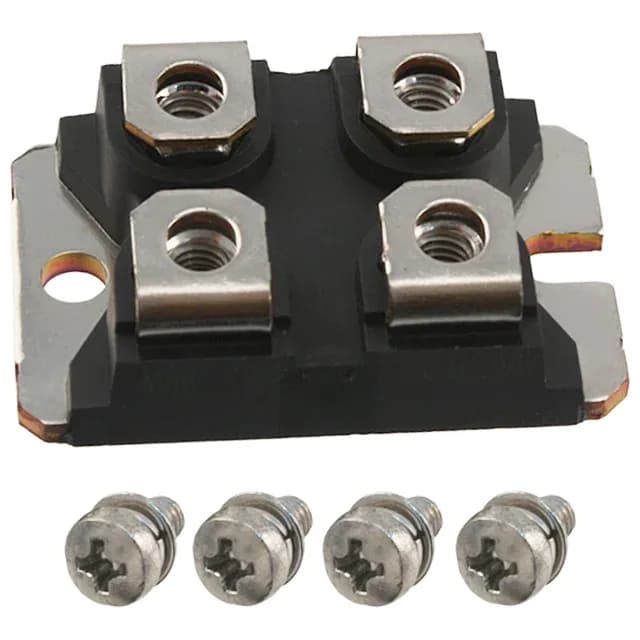

| Parameter | STPS10170CG-TR | STPS120L15TV | STPS15L45CB | STPS16H100CG-TR | STPS200170TV1 | STPS200170TV1Y |
|---|---|---|---|---|---|---|
| Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | ISOTOP | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | ISOTOP | ISOTOP |
| Current - average rectified (Io) (per diode) | 5A | 60A | 7.5A | 8A | 100A | 100A |
| Current - reverse leakage @ vr | 10 µA @ 170 V | 22 mA @ 12 V | 1 mA @ 45 V | 3.6 µA @ 100 V | 200 µA @ 170 V | 200 µA @ 170 V |
| Diode configuration | 1 Pair Common Cathode | 2 Independent | 1 Pair Common Cathode | 1 Pair Common Cathode | 2 Independent | 2 Independent |
| Mounting type | Surface Mount | Chassis Mount | Surface Mount | Surface Mount | Chassis Mount | Chassis Mount |
| Operating temperature - junction | 175°C(Max) | -55°C~150°C | 150°C(Max) | 175°C(Max) | 150°C (Max) | -55°C~150°C |
| Package | Tape & Reel (TR); Cut Tape (CT) | Tube | Tube | Tape & Reel (TR); Cut Tape (CT) | Tube | Tube |
Shared specifications
- Speed
- Fast Recovery =< 500ns, > 200mA (Io)
Request a quote on any STMicroelectronics STPS Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the STMicroelectronics STMicroelectronics STPS Series variants differ?
- STMicroelectronics STPS Series part numbers differ by case, current - average rectified (Io) (per diode), current - reverse leakage @ vr and diode configuration. Use the selection guide above to pick by case.
- How many STMicroelectronics STMicroelectronics STPS Series part numbers are listed?
- 36 STMicroelectronics STMicroelectronics STPS Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for STMicroelectronics STMicroelectronics STPS Series?
- Request a quote (RFQ) for any STMicroelectronics STPS Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
