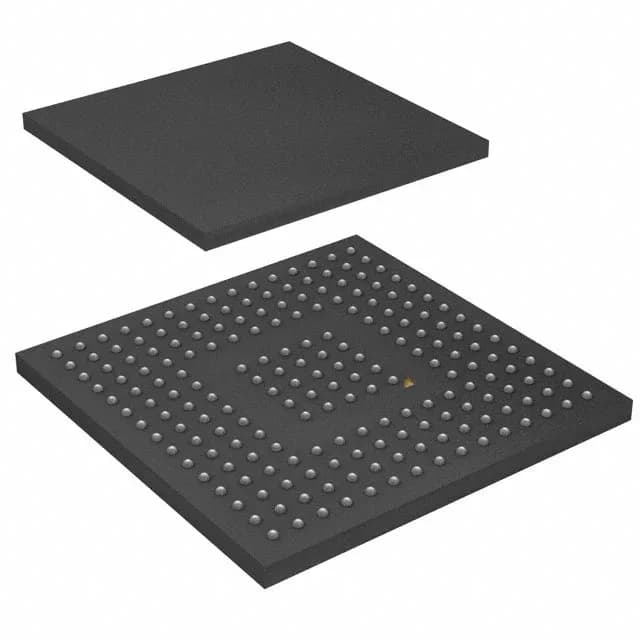

STM32F722IEK6
STMicroelectronics
Tray-40°C ~ 85°C (TA)CANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, UART/USART, USB
Ref. price$14.8800
Lead time on requestGet quote ›
STMicroelectronics STM32F7 Series
65 variants · STMicroelectronics
About the STMicroelectronics STMicroelectronics STM32F7 Series series
The STMicroelectronics STMicroelectronics STM32F7 Series series groups 65 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common core processor of ARM® Cortex®-M7, core size of 32-Bit Single-Core and EEPROM size of -. Variants differ by case, connectivity and data converters, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 64-LQFP · 100-LQFP · 144-LQFP · 176-LQFP · 176-UFBGA
- Connectivity
- CANbus, EBI/EMI, I2C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, UART/USART, USB · CANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, UART/USART, USB · CANbus, I²C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, UART/USART, USB
- Data converters
- A/D 16x12b; D/A 2x12b · A/D 24x12b; D/A 2x12b
- Number of i (O)
- 50 · 82 · 112 · 114 · 138 · 140
- Operating temperature
- -40°C ~ 85°C (TA) · -40°C ~ 105°C (TA)
- Peripherals
- Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT · Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT
- Program memory size
- 64KB (64K x 8) · 256KB (256K x 8) · 512KB (512K x 8)
Variant comparison
| Parameter | STM32F722IEK6 | STM32F722RET7 | STM32F722VET6 | STM32F722ZET6 | STM32F723IET6 | STM32F723IET7 |
|---|---|---|---|---|---|---|
| Case | 176-UFBGA | 64-LQFP | 100-LQFP | 144-LQFP | 176-LQFP | 176-LQFP |
| Connectivity | CANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, UART/USART, USB | CANbus, I²C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, UART/USART, USB | CANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, UART/USART, USB | CANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, UART/USART, USB | CANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, UART/USART, USB | CANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, UART/USART, USB |
| Data converters | A/D 24x12b; D/A 2x12b | A/D 16x12b; D/A 2x12b | A/D 16x12b; D/A 2x12b | A/D 24x12b; D/A 2x12b | A/D 24x12b; D/A 2x12b | A/D 24x12b; D/A 2x12b |
| Number of i (O) | 140 | 50 | 82 | 114 | 138 | 138 |
| Operating temperature | -40°C ~ 85°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 105°C (TA) |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT |
| Program memory size | 512KB (512K x 8) | 512KB (512K x 8) | 512KB (512K x 8) | 512KB (512K x 8) | 512KB (512K x 8) | 512KB (512K x 8) |
Shared specifications
- Core processor
- ARM® Cortex®-M7
- Core size
- 32-Bit Single-Core
- EEPROM size
- -
- Mounting type
- Surface Mount
- Oscillator type
- Internal
- Package
- Tray
- Program memory type
- FLASH
- RAM size
- 256K x 8
- Speed
- 216MHz
- Voltage - supply (Vcc (Vdd))
- 1.7V ~ 3.6V
Request a quote on any STMicroelectronics STM32F7 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the STMicroelectronics STMicroelectronics STM32F7 Series variants differ?
- STMicroelectronics STM32F7 Series part numbers differ by case, connectivity, data converters and number of i (O). Use the selection guide above to pick by case.
- How many STMicroelectronics STMicroelectronics STM32F7 Series part numbers are listed?
- 65 STMicroelectronics STMicroelectronics STM32F7 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for STMicroelectronics STMicroelectronics STM32F7 Series?
- Request a quote (RFQ) for any STMicroelectronics STM32F7 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
