SN65LVDS100D
Texas Instruments
3V ~ 3.6VTube-40°C~85°C
Ref. price$6.5800
Lead time on requestGet quote ›
Texas Instruments SN65LV Series
25 variants · Texas Instruments
About the Texas Instruments Texas Instruments SN65LV Series series
The Texas Instruments Texas Instruments SN65LV Series series groups 25 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common mounting type of Surface Mount. Variants differ by applications, case and package, so you can match the exact applications your application requires using the selection guide below.
Select a variant by
- Applications
- - · Cell Phone
- Case
- 8-SOIC (0.154\", 3.90mm Width) · 8-TSSOP, 8-MSOP (0.118\", 3.00mm Width) · 16-SOIC (0.154\", 3.90mm Width) · 16-TSSOP (0.173\", 4.40mm Width) · 38-TFSOP (0.173\", 4.40mm Width) · 49-UFBGA, DSBGA · 64-TFSOP (0.240\", 6.10mm Width)
- Package
- Tape & Reel (TR); Cut Tape (CT) · Tube
- Voltage
- 1.65V ~ 1.95V · 2.4V ~ 3.6V · 3V ~ 3.6V
- Capacitance - input
- 0.6 pF · 3 pF · 5 pF
- Current - supply
- 12mA · 23mA · 25mA · 50mA · 62mA · 84mA
- Data rate
- 2Gbps · 400Mbps
Variant comparison

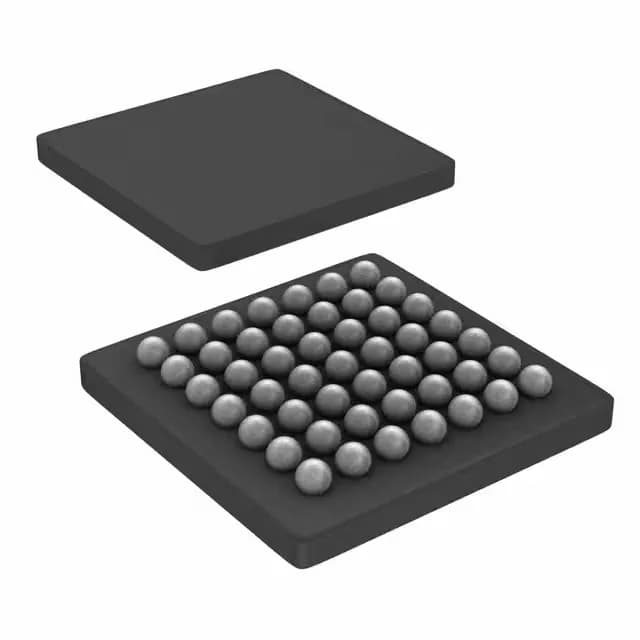

| Parameter | SN65LVDS311YFFT | SN65LVDS100D | SN65LVDS100DGK | SN65LVDS100DGKR | SN65LVDS101D | SN65LVDS104D |
|---|---|---|---|---|---|---|
| Applications | Cell Phone | - | - | - | - | - |
| Case | 49-UFBGA, DSBGA | 8-SOIC (0.154\", 3.90mm Width) | 8-TSSOP, 8-MSOP (0.118\", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118\", 3.00mm Width) | 8-SOIC (0.154\", 3.90mm Width) | 16-SOIC (0.154\", 3.90mm Width) |
| Package | Tape & Reel (TR); Cut Tape (CT) | Tube | Tube | Tape & Reel (TR); Cut Tape (CT) | Tube | Tube |
| Voltage | 1.65V ~ 1.95V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V |
| Capacitance - input | — | 0.6 pF | 0.6 pF | 0.6 pF | 0.6 pF | 3 pF |
| Current - supply | — | 25mA | 25mA | 25mA | 50mA | 23mA |
| Data rate | — | 2Gbps | 2Gbps | 2Gbps | 2Gbps | 400Mbps |
Shared specifications
- Mounting type
- Surface Mount
Request a quote on any Texas Instruments SN65LV Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Texas Instruments Texas Instruments SN65LV Series variants differ?
- Texas Instruments SN65LV Series part numbers differ by applications, case, package and voltage. Use the selection guide above to pick by applications.
- How many Texas Instruments Texas Instruments SN65LV Series part numbers are listed?
- 25 Texas Instruments Texas Instruments SN65LV Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Texas Instruments Texas Instruments SN65LV Series?
- Request a quote (RFQ) for any Texas Instruments SN65LV Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
