Toshiba Semiconductor — Optoisolators

Turnkey BOM procurement and spot-buy shortage sourcing for Toshiba Semiconductor Optoisolators — 39 part numbers with specifications and datasheets. Filter by key

title

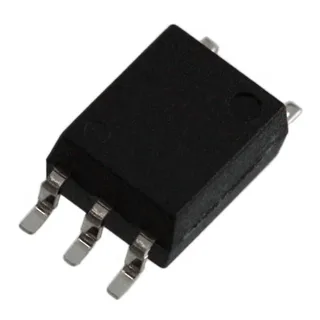

TLP104(TPR,E) · TLP109(IGM-TPL,E · TLP109(IGM-TPR,E · TLP109(TPR,E)
Current Transfer Ratio (Max)
75% @ 10mA · 600% @ 5mA · 150% @ 5mA · 300% @ 5mA
Current Transfer Ratio (Min)
25% @ 10mA · 20% @ 16mA · 100% @ 5mA · 50% @ 5mA
Current - DC Forward (If) (Max)
25mA · 20 mA · 20mA · 50 mA
Current - Output / Channel
8 mA · 8mA · 10 mA · 50mA
Operating Temperature
-40°C ~ 125°C · -55°C ~ 125°C · -40°C ~ 100°C · -55°C ~ 110°C
Voltage - Forward (Vf) (Typ)
1.61V · 1.64V · 1.58V · 1.25V
Output Type
Open Collector · Transistor · Push-Pull, Totem Pole
