Toshiba Semiconductor — Power Management (PMIC / Gate Driver)

Turnkey BOM procurement and spot-buy shortage sourcing for Toshiba Semiconductor Power Management (PMIC / Gate Driver) — 20 part numbers with specifications and

title

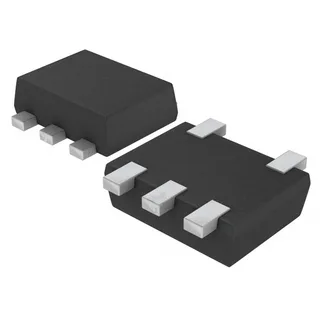

TAR5S16U(TE85L,F) · TAR5S35U(TE85L,F) · TBD62781APG · TCR2DG12,LF
Voltage - Output (Min/Fixed)
1.6V · 3.5V · 1.2V · 3.3V
Voltage Dropout (Max)
0.2V @ 50mA · 0.8V @ 100mA · 0.11V @ 100mA · 0.7V @ 300mA
Package / Case
6-SMD (5 Leads), Flat Lead · 18-DIP (0.300", 7.62mm) · 6-XFBGA, WLCSP · 4-UFBGA, WLCSP
Supplier Device Package
UFV · 18-DIP · 6-WCSPG (0.8x1.2) · 4-WCSP (0.79x0.79)
Current - Quiescent (Iq)
70 µA · 60 µA · 2 µA
PSRR
70dB (1kHz) · 85dB ~ 50dB (1kHz ~ 100kHz) · 73dB (1kHz)
Current - Output
200mA · 300mA
