3750Vrms isolation, AC/DC input — fits industrial and rugged environments

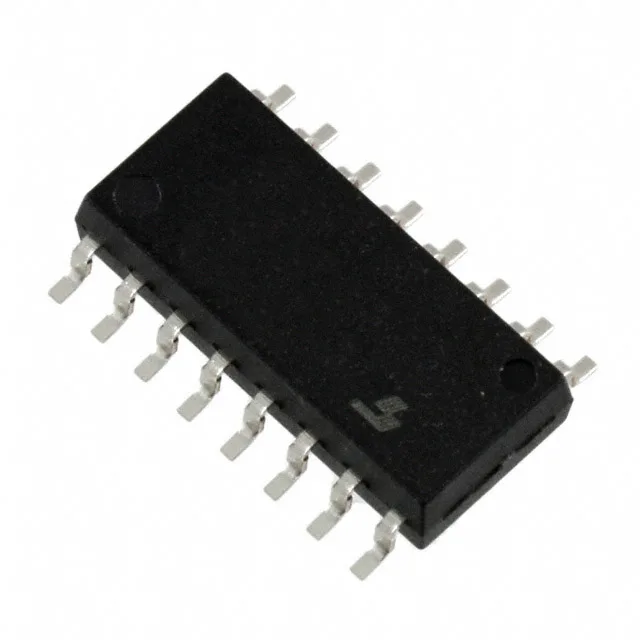

The Toshiba TLP292-4(V4-TP,E is a 4-channel transistor-output optocoupler in a 16-SOIC package. Its 3750Vrms isolation rating covers basic insulation for 240VAC mains-referenced circuits, and the AC/DC input type lets the phototransistor pair handle both polarities — useful for bipolar AC-line zero-cross detect or DC bus sensing without an external bridge rectifier. Output transistor withstands 80V, so it can drive a 48V industrial bus or a small relay coil directly. The 50mA per-channel output current suits logic-level interfacing (5V/3.3V) and low-power loads. The wide Current Transfer Ratio spread (50% to 600% at 5mA IF) means the LED drive current must be sized for the minimum CTR at the operating forward current — a common oversight that starves the output at low IF or high temperature. Rise and fall times of 2µs and 3µs (typical) limit this part to switching frequencies below roughly 100 kHz, so it's a fit for status feedback, PWM gate drive, or relay-coil drive, not for high-speed data isolation (CAN, SPI).
Most 4-channel SOIC optos top out at 85°C or 105°C. That extended range matters for outdoor telecom cabinets, engine-bay electronics, or any sealed enclosure that sees thermal cycling. The storage temperature range is wider still, but the operating limit is the one that governs the design's junction-temperature budget.
