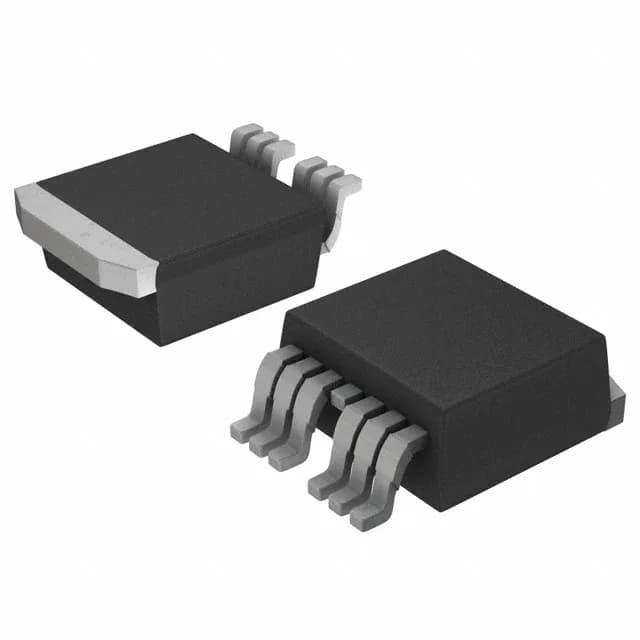

BTS500101TADATMA2
Infineon Technologies
Not RequiredTape & Reel (TR) Cut Tape (CT)-40°C ~ 150°C (TJ)
Ref. price$6.5000
Lead time on requestGet quote ›
Infineon Technologies BTS5 Series
33 variants · Infineon Technologies
About the Infineon Technologies Infineon Technologies BTS5 Series series
The Infineon Technologies Infineon Technologies BTS5 Series series groups 33 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common input type of Non-Inverting, number of outputs of 1 and output configuration of High Side. Variants differ by case, current - output and fault protection, so you can match the exact case your application requires using the selection guide below. All listed Infineon Technologies BTS5 Series part numbers are active and orderable.
Select a variant by
- Case

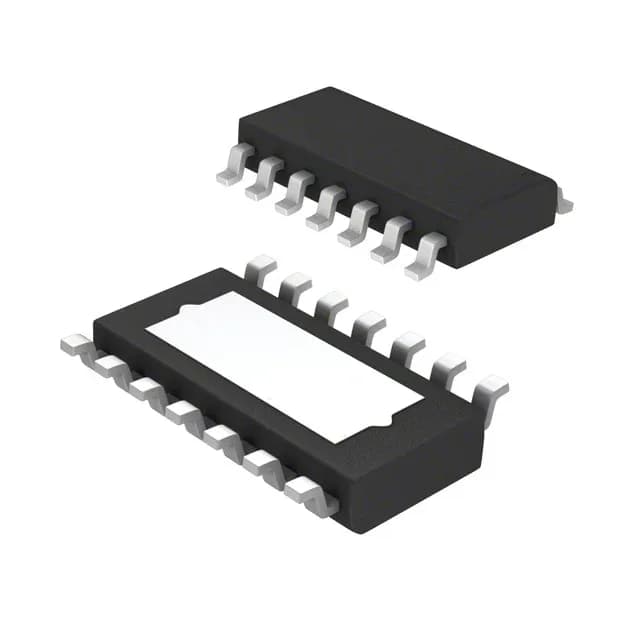

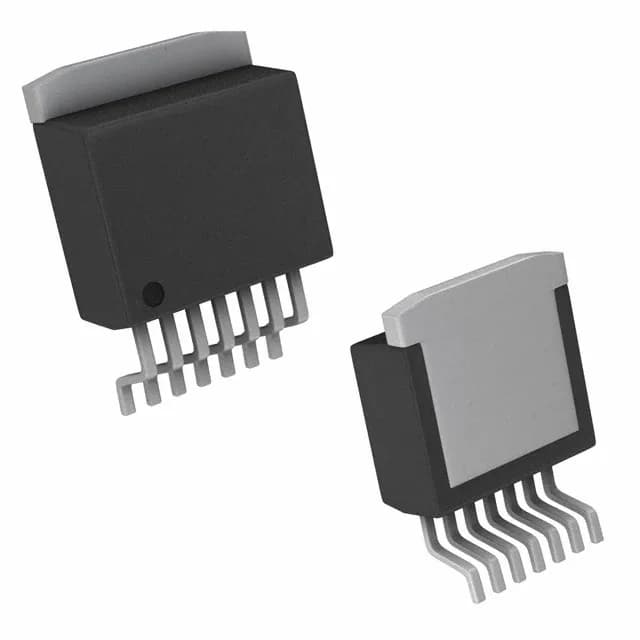

- 14-SOIC (0.154\", 3.90mm Width) Exposed Pad · TO-220-7 · TO-252-5, DPak (4 Leads + Tab), TO-252AD · TO-263-7, D2PAK (6 Leads + Tab), TO-263CB · TO-263-7, D²Pak (6 Leads + Tab) · TO-263-7, D²Pak (6 Leads + Tab), TO-263CB · TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
- Current - output
- 9.5A · 10A · 11A · 25A · 29A · 33A · 48A
- Fault protection
- Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage · Current Limiting (Fixed), Over Temperature, Over Voltage, Short Circuit, UVLO · Open Load Detect, Over Temperature, Over Voltage · Over Temperature, Over Voltage · Over Temperature, Over Voltage, Reverse Battery, Short Circuit · Over Temperature, Over Voltage, Short Circuit
- Features
- - · Auto Restart · Slew Rate Controlled
- Interface
- Logic · On/Off
- Mounting type
- Surface Mount · Through Hole
- Operating temperature
- -40°C ~ 150°C (TJ) · -40°C~150°C(TJ)
- Package
- Bulk · Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT) · Tube
Variant comparison
| Parameter | BTS500101TADATMA2 | BTS500101TAEATMA1 | BTS500151TADATMA2 | BTS500201TADATMA2 | BTS500251TADATMA2 | BTS500801TEAAUMA1 |
|---|---|---|---|---|---|---|

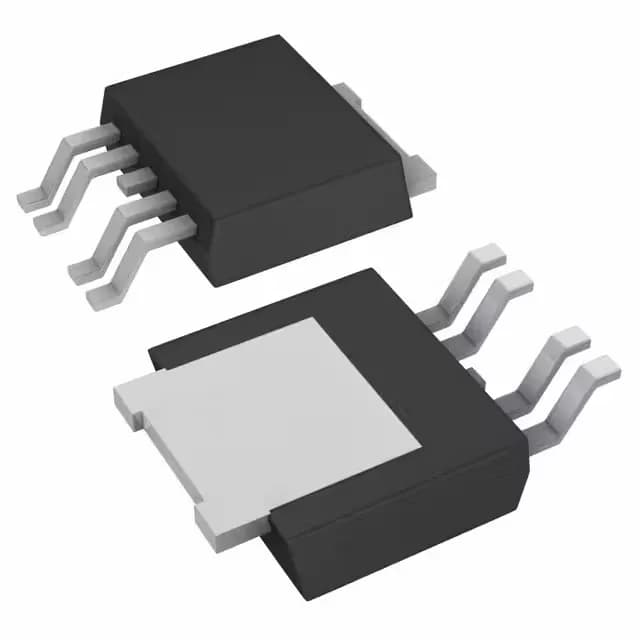

| Case | TO-263-7, D²Pak (6 Leads + Tab), TO-263CB | TO-263-7, D²Pak (6 Leads + Tab), TO-263CB | TO-263-7, D²Pak (6 Leads + Tab) | TO-263-7, D²Pak (6 Leads + Tab), TO-263CB | TO-263-7, D2PAK (6 Leads + Tab), TO-263CB | TO-252-5, DPak (4 Leads + Tab), TO-252AD |
| Current - output | 48A | 48A | 33A | 29A | 25A | 10A |
| Fault protection | Over Temperature, Over Voltage, Reverse Battery, Short Circuit | Over Temperature, Over Voltage, Short Circuit | Over Temperature, Over Voltage | Over Temperature, Over Voltage, Reverse Battery, Short Circuit | Over Temperature, Over Voltage, Reverse Battery, Short Circuit | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Features | - | - | - | - | - | Auto Restart |
| Interface | On/Off | On/Off | On/Off | On/Off | On/Off | On/Off |
| Mounting type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) |
Shared specifications
- Input type
- Non-Inverting
- Number of outputs
- 1
- Output configuration
- High Side
- Output type
- N-Channel
- Ratio - Input:Output
- 1:1
- Switch type
- General Purpose
- Voltage - supply (Vcc (Vdd))
- Not Required
Request a quote on any Infineon Technologies BTS5 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Infineon Technologies Infineon Technologies BTS5 Series variants differ?
- Infineon Technologies BTS5 Series part numbers differ by case, current - output, fault protection and features. Use the selection guide above to pick by case.
- How many Infineon Technologies Infineon Technologies BTS5 Series part numbers are listed?
- 33 Infineon Technologies Infineon Technologies BTS5 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Infineon Technologies Infineon Technologies BTS5 Series?
- Request a quote (RFQ) for any Infineon Technologies BTS5 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
