Vishay — Memory (DRAM / SRAM / Flash / EEPROM)

Vishay Memory (DRAM / SRAM / Flash / EEPROM) — 10 part numbers with specifications and datasheets. Filter by key specs and request a quote on ICBOMS.

title

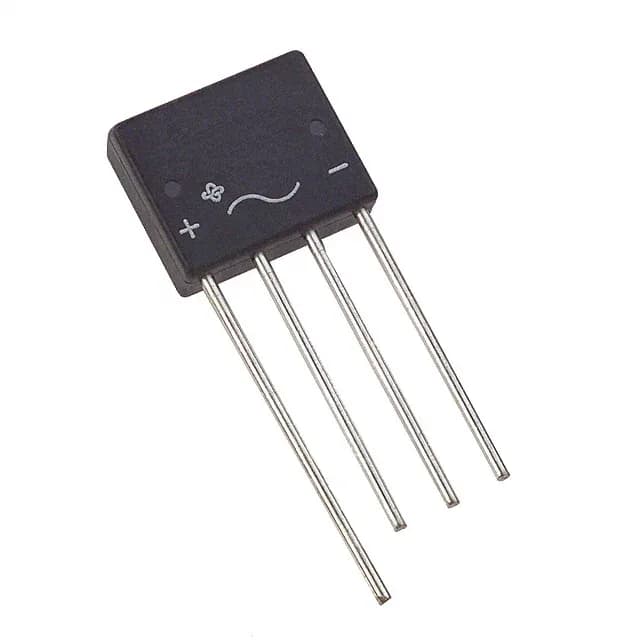

KBL02-E4/51 · TCMT1105 · VS-10TTS08-M3 · VS-25TTS12SLHM3
Current - Non Rep. Surge 50, 60Hz (Itsm)
95A @ 50Hz · 350A @ 50Hz · 145A, 150A · 300A @ 50Hz
Supplier Device Package
KBL · 4-SOP · TO-220-3 · TO-263AB (D²PAK)
Package / Case
4-SIP, KBL · 4-SOIC (0.173", 4.40mm Width) · TO-220-3 · TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Voltage - On State (Vtm) (Max)
1.15 V · 1.25 V · 2 V · 1.3 V
Current - Gate Trigger (Igt) (Max)
15 mA · 45 mA · 40 mA · 150 mA
Current - Off State (Max)
1 mA · 10 mA · 6.5 mA · 500 µA
Current - On State (It (AV)) (Max)
6.5 A · 16 A · 20 A · 35 A
