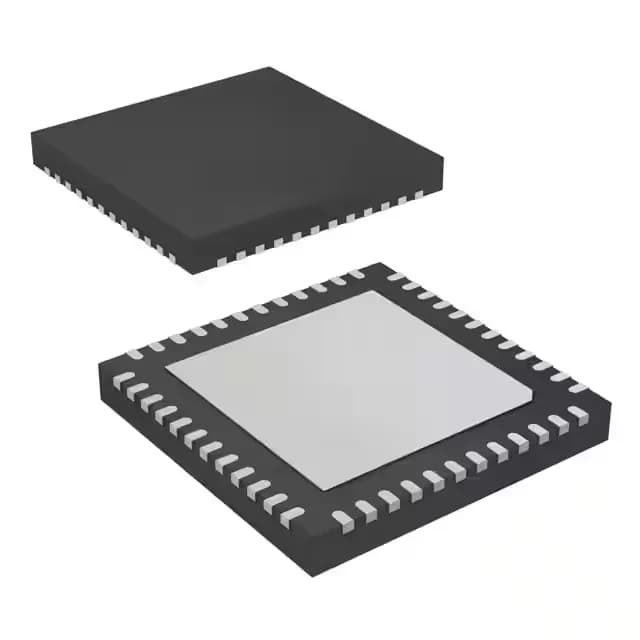

CDCE18005RGZT
Texas Instruments
3V ~ 3.6VTape & Reel (TR); Cut Tape (CT)-40°C~85°C
Ref. price$16.0400
Lead time on requestGet quote ›
Texas Instruments CDCE Series
15 variants · Texas Instruments
About the Texas Instruments Texas Instruments CDCE Series series
The Texas Instruments Texas Instruments CDCE Series series groups 15 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common mounting type of Surface Mount and number of circuits of 1. Variants differ by case, differential - Input:Output and divider (Multiplier), so you can match the exact case your application requires using the selection guide below. All listed Texas Instruments CDCE Series part numbers are active and orderable.
Select a variant by
- Case
- 14-TSSOP (0.173\", 4.40mm Width) · 16-TSSOP (0.173\", 4.40mm Width) · 20-TSSOP (0.173\", 4.40mm Width) · 24-TSSOP (0.173\", 4.40mm Width) · 48-VFQFN Exposed Pad
- Differential - Input:Output
- No/No · Yes/No · Yes/Yes
- Divider (Multiplier)
- Yes/No · Yes/Yes
- Frequency
- 1.5GHz · 230MHz · 300MHz
- Input
- LVCMOS, Crystal · LVCMOS, LVDS, LVPECL
- Operating temperature
- -40°C~85°C · -40°C~105°C(TA) · -40°C~125°C
- Output
- LVCMOS · LVCMOS, Crystal · LVCMOS, LVDS, LVPECL
- Package
- Tape & Reel (TR); Cut Tape (CT) · Tube
Variant comparison
| Parameter | CDCE18005RGZT | CDCE706PWR | CDCE813QPWRQ1 | CDCE913PWR | CDCE913QPWRQ1 | CDCE925PW |
|---|---|---|---|---|---|---|
| Case | 48-VFQFN Exposed Pad | 20-TSSOP (0.173\", 4.40mm Width) | 14-TSSOP (0.173\", 4.40mm Width) | 14-TSSOP (0.173\", 4.40mm Width) | 14-TSSOP (0.173\", 4.40mm Width) | 16-TSSOP (0.173\", 4.40mm Width) |
| Differential - Input:Output | Yes/Yes | Yes/No | No/No | No/No | No/No | No/No |
| Divider (Multiplier) | Yes/No | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | Yes/No |
| Frequency | 1.5GHz | 300MHz | 230MHz | 230MHz | 230MHz | 230MHz |
| Input | LVCMOS, LVDS, LVPECL | LVCMOS, Crystal | LVCMOS, Crystal | LVCMOS, Crystal | LVCMOS, Crystal | LVCMOS, Crystal |
| Operating temperature | -40°C~85°C | -40°C~85°C | -40°C~105°C(TA) | -40°C~85°C | -40°C~125°C | -40°C~85°C |
| Output | LVCMOS, LVDS, LVPECL | LVCMOS | LVCMOS, Crystal | LVCMOS | LVCMOS | LVCMOS |
| Package | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tube |
Shared specifications
- Mounting type
- Surface Mount
- Number of circuits
- 1
Request a quote on any Texas Instruments CDCE Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Texas Instruments Texas Instruments CDCE Series variants differ?
- Texas Instruments CDCE Series part numbers differ by case, differential - Input:Output, divider (Multiplier) and frequency. Use the selection guide above to pick by case.
- How many Texas Instruments Texas Instruments CDCE Series part numbers are listed?
- 15 Texas Instruments Texas Instruments CDCE Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Texas Instruments Texas Instruments CDCE Series?
- Request a quote (RFQ) for any Texas Instruments CDCE Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
