TPS63002DRCR
Texas Instruments
Tape & Reel (TR); Cut Tape (CT)-40°C~85°C(TA)1.25MHz ~ 1.5MHz
Ref. price$2.6800
Lead time on requestGet quote ›
Texas Instruments TPS63 Series
30 variants · Texas Instruments
About the Texas Instruments Texas Instruments TPS63 Series series
The Texas Instruments Texas Instruments TPS63 Series series groups 30 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common function of Step-Up/Step-Down, mounting type of Surface Mount and number of outputs of 1. Variants differ by case, current - output and frequency, so you can match the exact case your application requires using the selection guide below. All listed Texas Instruments TPS63 Series part numbers are active and orderable.
Select a variant by
- Case
- 10-VFDFN Exposed Pad · 14-VFDFN Exposed Pad · 20-UFBGA, DSBGA · 25-UFBGA, DSBGA
- Current - output
- 1.6A (Switch) · 2A · 2A (Switch) · 2A, 4A · 2.12A (Switch) · 3.5A (Switch)
- Frequency
- 1.25MHz ~ 1.5MHz · 2.4MHz · 2.5MHz
- Operating temperature
- -40°C ~ 85°C (TA) · -40°C~85°C(TA)
- Output type
- Adjustable · Fixed · Programmable
- Package
- Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
- Voltage - output
- - · 3.6V · 5.5V
- Voltage - output (Min (Fixed))
- 1V · 1.2V · 2.3V · 2.5V · 2.8V, 3.3V · 2.9V · 2.9V, 3.4V · 3.3V · 5V
Variant comparison

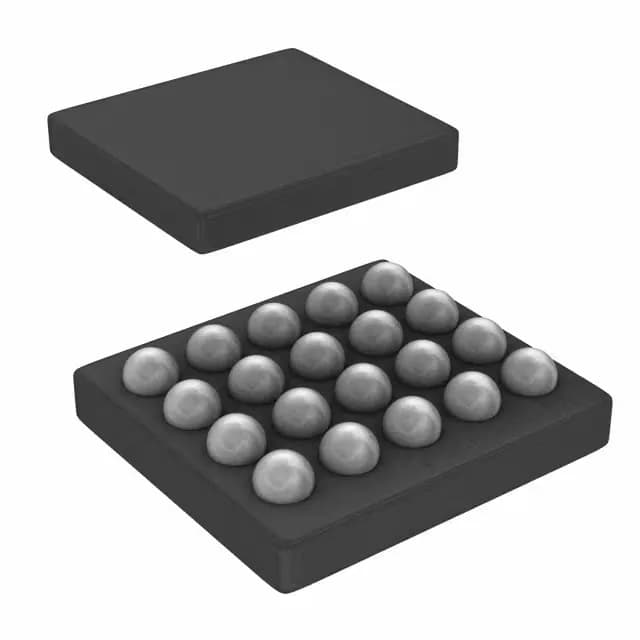

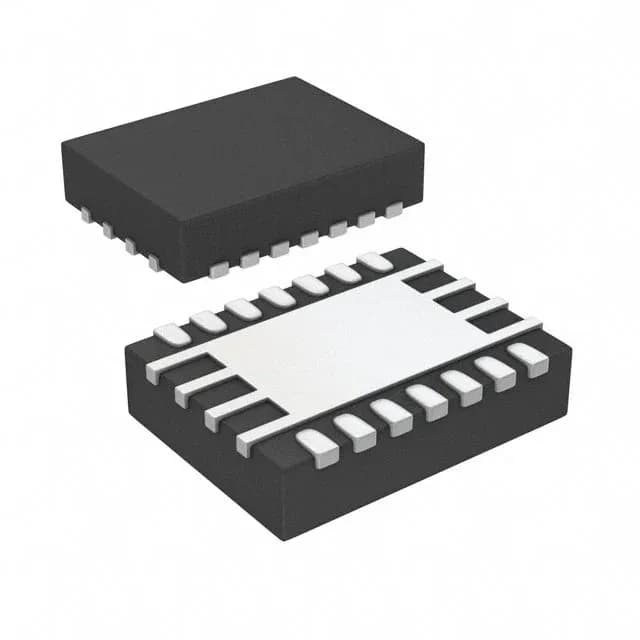

| Parameter | TPS63002DRCR | TPS63010YFFR | TPS63011YFFT | TPS63012YFFT | TPS63021DSJT | TPS63024YFFR |
|---|---|---|---|---|---|---|
| Case | 10-VFDFN Exposed Pad | 20-UFBGA, DSBGA | 20-UFBGA, DSBGA | 20-UFBGA, DSBGA | 14-VFDFN Exposed Pad | 20-UFBGA, DSBGA |
| Current - output | 1.6A (Switch) | 2A (Switch) | 2A (Switch) | 2A (Switch) | 3.5A (Switch) | 2.12A (Switch) |
| Frequency | 1.25MHz ~ 1.5MHz | 2.4MHz | 2.4MHz | 2.4MHz | 2.4MHz | 2.5MHz |
| Operating temperature | -40°C~85°C(TA) | -40°C~85°C(TA) | -40°C ~ 85°C (TA) | -40°C~85°C(TA) | -40°C~85°C(TA) | -40°C~85°C(TA) |
| Output type | Fixed | Adjustable | Programmable | Programmable | Fixed | Adjustable |
| Package | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) |
| Voltage - output | - | 5.5V | - | - | - | 3.6V |
| Voltage - output (Min (Fixed)) | 5V | 1.2V | 2.8V, 3.3V | 2.9V, 3.4V | 3.3V | 2.5V |
Shared specifications
- Function
- Step-Up/Step-Down
- Mounting type
- Surface Mount
- Number of outputs
- 1
- Output configuration
- Positive
- Synchronous rectifier
- Yes
- Topology
- Buck-Boost
- Voltage - input
- 5.5V
Request a quote on any Texas Instruments TPS63 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Texas Instruments Texas Instruments TPS63 Series variants differ?
- Texas Instruments TPS63 Series part numbers differ by case, current - output, frequency and operating temperature. Use the selection guide above to pick by case.
- How many Texas Instruments Texas Instruments TPS63 Series part numbers are listed?
- 30 Texas Instruments Texas Instruments TPS63 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Texas Instruments Texas Instruments TPS63 Series?
- Request a quote (RFQ) for any Texas Instruments TPS63 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
