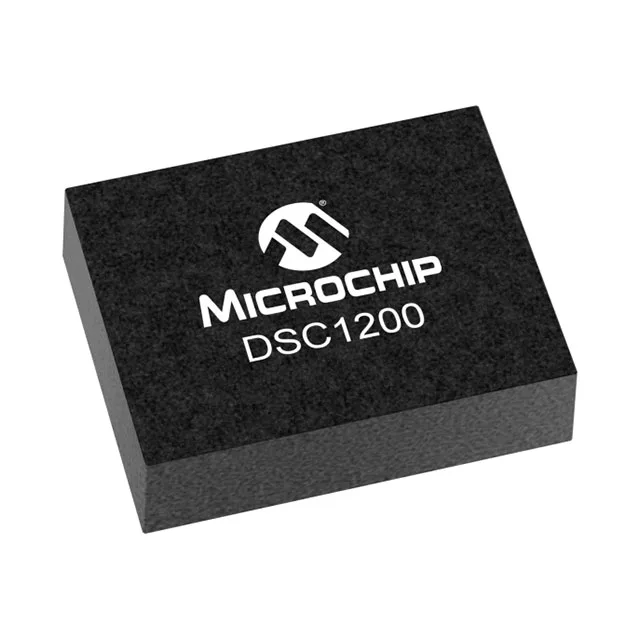

DSC1200CL3-PROG
Microchip Technology
DSC1200-40°C~105°CTube
Ref. price$2.5050
Lead time on requestGet quote
Microchip Technology DSC12 Series
153 variants · Microchip Technology
About the Microchip Technology DSC12 Series
The Microchip Technology DSC12 Series series groups 153 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common base resonator of MEMS, case of 6-VDFN and function of Standby (Power Down). Variants differ by frequency stability, operating temperature and output, so you can match the exact frequency stability your application requires using the selection guide below.
Select a variant by
- Frequency stability
- - · ±20ppm
- Operating temperature
- -40°C ~ 125°C · -40°C~105°C · -40°C~125°C
- Output
- - · CMOS
- Package
- Tape & Reel (TR) · Tape & Reel (TR); Cut Tape (CT) · Tube
- Size (Dimension)
- 0.098\" L x 0.079\" W (2.50mm x 2.00mm) · 0.126\" L x 0.098\" W (3.20mm x 2.50mm) · 0.197\" L x 0.126\" W (5.00mm x 3.20mm) · 0.276\" L x 0.197\" W (7.00mm x 5.00mm)
- Current - supply
- - · 27mA (Typ)
- Frequency
- 40 MHz · 48 MHz
Shared specifications
- Base resonator
- MEMS
- Case
- 6-VDFN
- Function
- Standby (Power Down)
- Height - seated
- 0.035\" (0.90mm)
- Mounting
- Surface Mount
- Ratings
- -
- Spread spectrum bandwidth
- -
- Type
- XO (Standard)
- Voltage
- 2.25V ~ 3.63V
Variant comparison
| Parameter | DSC1200BL3-PROG | DSC1200BL3-PROGT | DSC1200CL3-PROG | DSC1200CL3-PROGT | DSC1200DL3-PROG | DSC1200DL3-PROGT |
|---|---|---|---|---|---|---|
| Frequency stability | - | - | - | - | - | - |
| Operating temperature | -40°C~105°C | -40°C~105°C | -40°C~105°C | -40°C~105°C | -40°C~105°C | -40°C~105°C |
| Output | - | - | - | - | - | - |
| Package | Tube | Tape & Reel (TR); Cut Tape (CT) | Tube | Tape & Reel (TR); Cut Tape (CT) | Tube | Tape & Reel (TR); Cut Tape (CT) |
| Size (Dimension) | 0.197\" L x 0.126\" W (5.00mm x 3.20mm) | 0.197\" L x 0.126\" W (5.00mm x 3.20mm) | 0.126\" L x 0.098\" W (3.20mm x 2.50mm) | 0.126\" L x 0.098\" W (3.20mm x 2.50mm) | 0.098\" L x 0.079\" W (2.50mm x 2.00mm) | 0.098\" L x 0.079\" W (2.50mm x 2.00mm) |
| Current - supply | — | - | - | - | - | - |
| Frequency | — | — | — | — | — | — |
Request a quote on any Microchip Technology DSC12 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
