STM8L001J3M3
STMicroelectronics
1.8V ~ 3.6VTube-40°C ~ 125°C (TA)
Ref. price$1.0000
Lead time on requestGet quote ›
STMicroelectronics STM8 Series
36 variants · STMicroelectronics
About the STMicroelectronics STMicroelectronics STM8 Series series
The STMicroelectronics STMicroelectronics STM8 Series series groups 36 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common core size of 8-Bit, mounting type of Surface Mount and oscillator type of Internal. Variants differ by case, connectivity and core processor, so you can match the exact case your application requires using the selection guide below. All listed STMicroelectronics STM8 Series part numbers are active and orderable.
Select a variant by
- Case
- 8-SOIC (0.154\", 3.90mm Width) · 20-TSSOP (0.173\", 4.40mm Width) · 20-UFQFN · 28-UFQFN · 48-LQFP · 64-LQFP
- Connectivity
- I2C, IrDA, SPI, UART/USART · I2C, SPI, UART/USART · I²C, IrDA, SPI, UART/USART · I²C, SPI, UART/USART
- Core processor
- STM8 · STM8A
- Data converters
- - · A/D 4x12b · A/D 10x12b · A/D 25x12b · A/D 28x12b
- EEPROM size
- - · 2K x 8 · 256 x 8
- Number of i (O)
- 6 · 18 · 26 · 41 · 54
- Operating temperature
- -40°C ~ 85°C (TA) · -40°C ~ 125°C (TA) · -40°C~85°C(TA)
- Package
- Tape & Reel (TR) Cut Tape (CT) · Tray · Tube
Variant comparison
| Parameter | STM8L001J3M3 | STM8L001J3M3TR | STM8L050J3M3 | STM8L050J3M3TR | STM8L051F3P6 | STM8L052C6T6 |
|---|---|---|---|---|---|---|

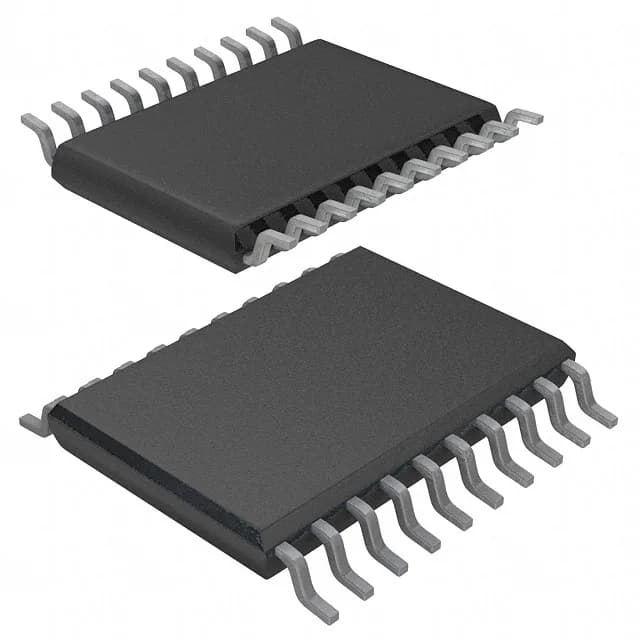

| Case | 8-SOIC (0.154\", 3.90mm Width) | 8-SOIC (0.154\", 3.90mm Width) | 8-SOIC (0.154\", 3.90mm Width) | 8-SOIC (0.154\", 3.90mm Width) | 20-TSSOP (0.173\", 4.40mm Width) | 48-LQFP |
| Connectivity | I²C, SPI, UART/USART | I²C, SPI, UART/USART | I²C, IrDA, SPI, UART/USART | I²C, IrDA, SPI, UART/USART | I²C, IrDA, SPI, UART/USART | I²C, IrDA, SPI, UART/USART |
| Core processor | STM8 | STM8 | STM8 | STM8 | STM8 | STM8 |
| Data converters | - | - | A/D 4x12b | A/D 4x12b | A/D 10x12b | A/D 25x12b |
| EEPROM size | 2K x 8 | 2K x 8 | 256 x 8 | 256 x 8 | 256 x 8 | 256 x 8 |
| Number of i (O) | 6 | 6 | 6 | 6 | 18 | 41 |
| Operating temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Package | Tube | Tape & Reel (TR) Cut Tape (CT) | Tray | Tape & Reel (TR) Cut Tape (CT) | Tube | Tray |
Shared specifications
- Core size
- 8-Bit
- Mounting type
- Surface Mount
- Oscillator type
- Internal
- Program memory type
- FLASH
- Speed
- 16MHz
Request a quote on any STMicroelectronics STM8 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the STMicroelectronics STMicroelectronics STM8 Series variants differ?
- STMicroelectronics STM8 Series part numbers differ by case, connectivity, core processor and data converters. Use the selection guide above to pick by case.
- How many STMicroelectronics STMicroelectronics STM8 Series part numbers are listed?
- 36 STMicroelectronics STMicroelectronics STM8 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for STMicroelectronics STMicroelectronics STM8 Series?
- Request a quote (RFQ) for any STMicroelectronics STM8 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
