LCMXO3LF-1300E-5UWG36ITR1K
Lattice Semiconductor Corporation
Tape & Reel (TR) Cut Tape (CT)-40°C ~ 100°C (TJ)MachXO3
Ref. price$5.6000
Lead time on requestGet quote
Lattice Semiconductor Corporation LCMXO3L Series
207 variants · Lattice Semiconductor Corporation
About the Lattice Semiconductor Corporation LCMXO3L Series
The Lattice Semiconductor Corporation LCMXO3L Series series groups 207 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common mounting of Surface Mount. Variants differ by case, number of i (O) and number of LABs (CLBs), so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 36-UFBGA, WLCSP · 121-VFBGA, CSPBGA · 256-LFBGA · 256-VFBGA, CSPBGA · 324-LFBGA
- Number of i (O)
- 28 · 100 · 206 · 279
- Number of LABs (CLBs)
- 80 · 160 · 264 · 540 · 858 · 1175
- Number of logic elements (Cells)
- 640 · 1280 · 2112 · 4320 · 6864 · 9400
- Operating temperature
- -40°C ~ 100°C (TJ) · 0°C ~ 85°C · 0°C ~ 85°C (TJ)
- Package
- Tape & Reel (TR) Cut Tape (CT) · Tray
- Total RAM bits
- 65536 · 75776 · 94208 · 245760 · 442368
- Voltage
- 1.14V ~ 1.26V · 2.375V ~ 3.465V
Shared specifications
- Mounting
- Surface Mount
Variant comparison

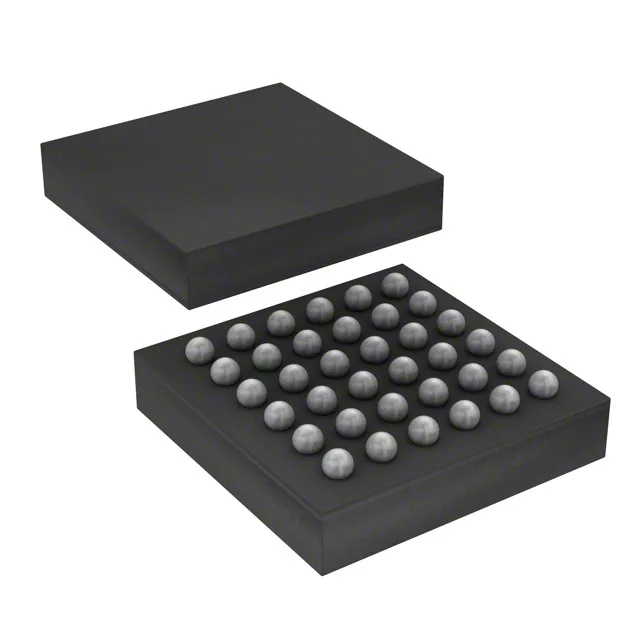

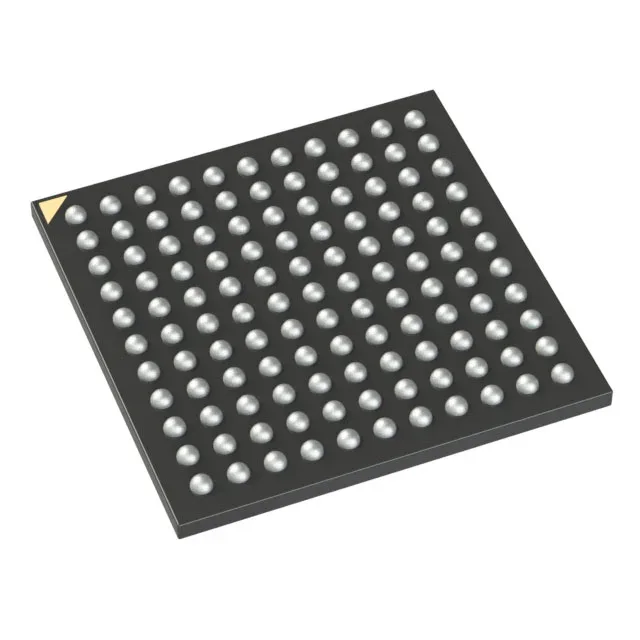

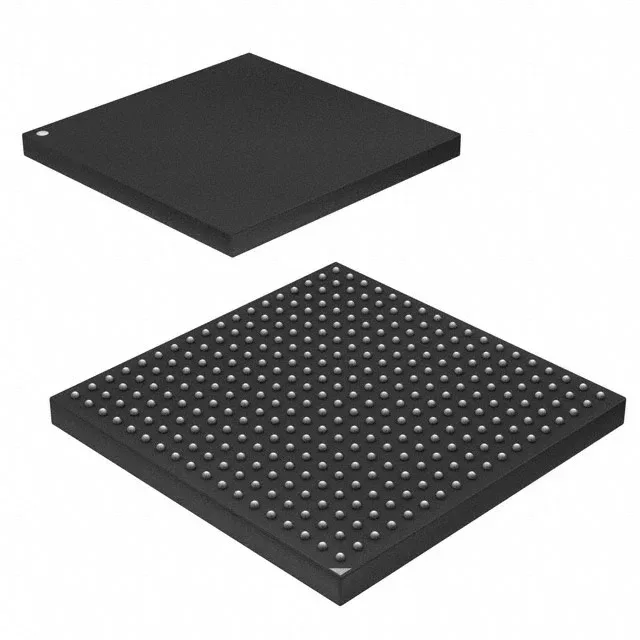

| Parameter | LCMXO3L-1300E-5UWG36CTR1K | LCMXO3LF-1300E-5UWG36ITR1K | LCMXO3LF-1300E-5UWG36CTR1K | LCMXO3LF-2100E-5MG256C | LCMXO3LF-4300E-5MG121C | LCMXO3LF-6900C-6BG324C |
|---|---|---|---|---|---|---|
| Case | 36-UFBGA, WLCSP | 36-UFBGA, WLCSP | 36-UFBGA, WLCSP | 256-VFBGA, CSPBGA | 121-VFBGA, CSPBGA | 324-LFBGA |
| Number of i (O) | 28 | 28 | 28 | 206 | 100 | 279 |
| Number of LABs (CLBs) | 160 | 160 | 160 | 264 | 540 | 858 |
| Number of logic elements (Cells) | 1280 | 1280 | 1280 | 2112 | 4320 | 6864 |
| Operating temperature | 0°C ~ 85°C | -40°C ~ 100°C (TJ) | 0°C ~ 85°C (TJ) | 0°C ~ 85°C (TJ) | 0°C ~ 85°C (TJ) | 0°C ~ 85°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tray | Tray | Tray |
| Total RAM bits | 65536 | 65536 | 65536 | 75776 | 94208 | 245760 |
| Voltage | 1.14V ~ 1.26V | 1.14V ~ 1.26V | 1.14V ~ 1.26V | 1.14V ~ 1.26V | 1.14V ~ 1.26V | 2.375V ~ 3.465V |
Request a quote on any Lattice Semiconductor Corporation LCMXO3L Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
