TXB0104D
Texas Instruments
Tube-40°C~85°C(TA)Auto-Direction Sensing
Ref. price$1.4300
Lead time on requestGet quote ›
Texas Instruments TXB010 Series
20 variants · Texas Instruments
About the Texas Instruments Texas Instruments TXB010 Series series
The Texas Instruments Texas Instruments TXB010 Series series groups 20 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common channel type of Bidirectional, data rate of 100Mbps and features of Auto-Direction Sensing. Variants differ by case, channels per circuit and operating temperature, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 12-UFBGA, DSBGA · 12-UFQFN · 14-SOIC (0.154\", 3.90mm Width) · 14-TSSOP (0.173\", 4.40mm Width) · 14-VFQFN Exposed Pad · 20-TSSOP (0.173\", 4.40mm Width)
- Channels per circuit
- 4 · 8
- Operating temperature
- -40°C ~ 85°C (TA) · -40°C~85°C(TA) · -40°C~125°C(TA)
- Package
- Tape & Reel (TR); Cut Tape (CT) · Tube
Variant comparison
| Parameter | TXB0104D | TXB0104DR | TXB0104PWR | TXB0104QPWRQ1 | TXB0104QRUTRQ1 | TXB0104RGYR |
|---|---|---|---|---|---|---|

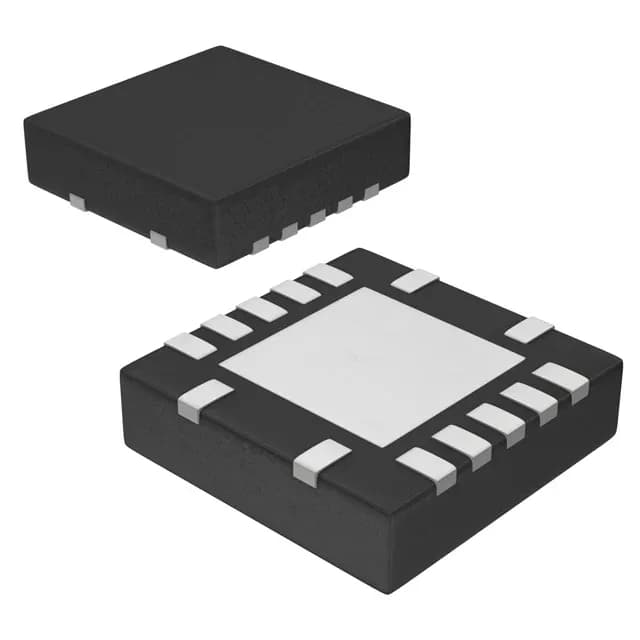

| Case | 14-SOIC (0.154\", 3.90mm Width) | 14-SOIC (0.154\", 3.90mm Width) | 14-TSSOP (0.173\", 4.40mm Width) | 14-TSSOP (0.173\", 4.40mm Width) | 12-UFQFN | 14-VFQFN Exposed Pad |
| Channels per circuit | 4 | 4 | 4 | 4 | 4 | 4 |
| Operating temperature | -40°C~85°C(TA) | -40°C~85°C(TA) | -40°C~85°C(TA) | -40°C~125°C(TA) | -40°C~125°C(TA) | -40°C~85°C(TA) |
| Package | Tube | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) |
Shared specifications
- Channel type
- Bidirectional
- Data rate
- 100Mbps
- Features
- Auto-Direction Sensing
- Mounting type
- Surface Mount
- Number of circuits
- 1
- Output type
- Tri-State, Non-Inverted
- Translator type
- Voltage Level
- Voltage - VCCA
- 1.2 V ~ 3.6 V
- Voltage - VCCB
- 1.65 V ~ 5.5 V
Request a quote on any Texas Instruments TXB010 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Texas Instruments Texas Instruments TXB010 Series variants differ?
- Texas Instruments TXB010 Series part numbers differ by case, channels per circuit, operating temperature and package. Use the selection guide above to pick by case.
- How many Texas Instruments Texas Instruments TXB010 Series part numbers are listed?
- 20 Texas Instruments Texas Instruments TXB010 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Texas Instruments Texas Instruments TXB010 Series?
- Request a quote (RFQ) for any Texas Instruments TXB010 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
