Renesas Electronics TW8819-NA2-CR — Logic ICs
Renesas Electronics

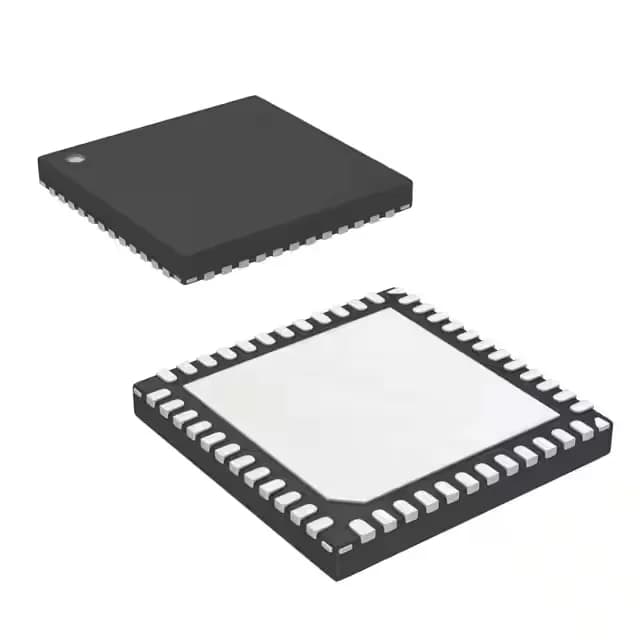

TW8819-NA2-CR Video LCD Controller, NTSC/PAL/SECAM, 48-QFN

MPNTW8819-NA2-CR
End of Life

Intersil TW8819-NA2-CR video LCD controller, NTSC/PAL/SECAM standards, serial control interface, 48-VFQFN exposed pad package, surface mount, tray.

$6.74Ref. price · indicative, final on quote
TW8819-NA2-CR datasheet
Packaging48-VFQFN Exposed Pad
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

TW8819-NA2-CR Technical Specifications
ParameterValue
Mounting typeSurface Mount
Control interfaceSerial
StandardsNTSC, PAL, SECAM
PackageTray
FunctionController
ApplicationsVideo Display
Case48-VFQFN Exposed Pad

Product details

Video LCD controller for multi-standard displays

The Intersil TW8819-NA2-CR is a dedicated video LCD controller designed to drive flat-panel displays from composite video sources. It handles the three major global broadcast standards — NTSC, PAL, and SECAM — making it a single-BOM solution for displays shipped into multiple regions. The controller accepts a serial control interface for register configuration, typical in monitor and TV chassis where an upstream MCU or SoC manages the display pipeline.

The ROHS3 rating covers the full substance restriction set, including the four phthalates, which simplifies compliance for EU-market equipment.

Frequently asked questions

Can TW8819-NA2-CR replace TW8819-NA2?

The TW8819-NA2-CR is the current orderable suffix for this device. The base function and package are identical; the suffix indicates the specific configuration and revision level. It is the direct replacement for any earlier TW8819-NA2 variant.

What is the difference between TW8819 and TW8816?

The TW8819 is a video LCD controller supporting NTSC, PAL, and SECAM standards with a serial control interface. The TW8816 is a different device in the same family; the exact parametric differences (e.g., feature set, package options) are detailed in the respective datasheets. For a functional alternative with I²C/SPI control, consider the TW8817-TA3-GRS.
