85-TFLGA footprint and what it demands from the board

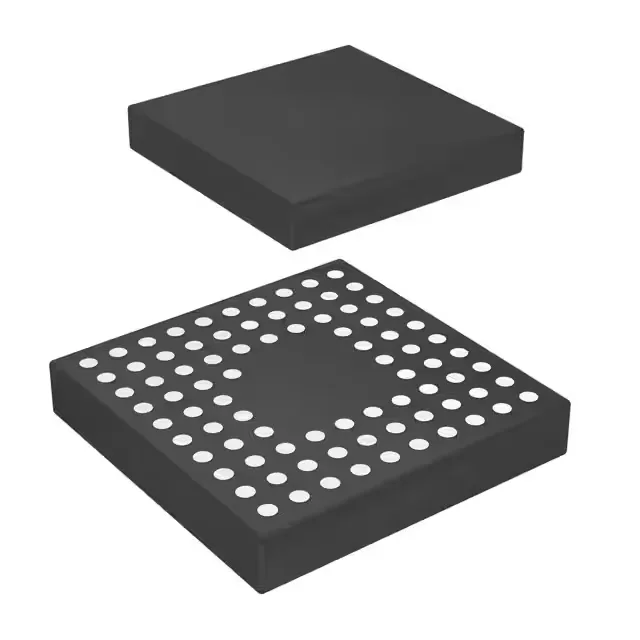

The DF38076RLP10V ships in an 85-TFLGA package (7x7 mm), a fine-pitch land-grid array that requires a controlled solder-paste stencil and a reflow profile matched to the ROHS3-compliant assembly.
10 MHz H8/300H core — throughput and memory budget
At 10 MHz the H8/300H 16-bit core executes instructions with no wait states from the internal 52 KB flash memory. The 2K x 8 RAM leaves roughly 1.2 KB for the application stack and dynamic data after the HAL and RTOS overhead — enough for a modest control loop with a few buffered ADC readings, but tight for a heavy protocol stack.
Peripheral set for a mixed-signal control board
Fifty-five general-purpose I/O lines give this MCU enough pins to drive a small character LCD, read a matrix keypad, and still leave a dozen lines for external interrupts or chip selects. The integrated 8-channel 10-bit ADC samples at a rate that suits slow analog sensors (temperature, pressure, potentiometer feedback) rather than high-speed acquisition. On-chip peripherals include a PWM timer for dimming or motor-speed control, a watchdog timer for fail-safe reset, and an IrDA-capable SCI for serial communication over a short optical link. The I²C and SCI interfaces cover the common sensor and display buses without external UART or I²C bridge chips.
