Renesas Electronics NP60N04VUK-E1-AY
Renesas Electronics

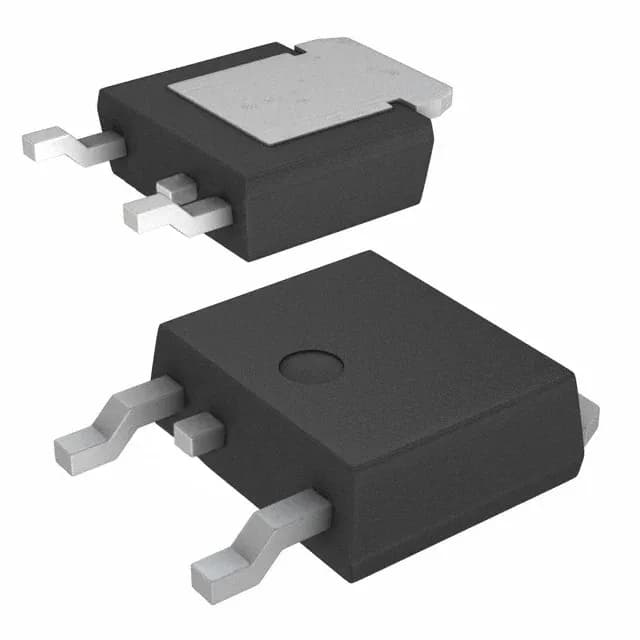

NP60N04VUK-E1-AY N-Channel MOSFET, 40V 60A TO-252

MPNNP60N04VUK-E1-AY
End of Life

Nexperia NP60N04VUK--AY, N-Channel MOSFET, 40 V Vdss, 60 A Id, 3.85 mOhm Rds(on) at 10 V, TO-252-3 (DPak) package, 175°C junction temperature.

$1.55Ref. price · indicative, final on quote
NP60N04VUK-E1-AY datasheet
PackagingTO-252-3, DPak (2 Leads + Tab), SC-63
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

NP60N04VUK-E1-AY Technical Specifications
ParameterValue
FET typeN-Channel
Mounting typeSurface Mount
Drain to source voltage40 V
Drive voltage (Max rds on, min rds on)10V
Current - continuous drain (Id) @ 25°C60A (Tc)
Power dissipation1.2W (Ta), 105W (Tc)
Operating temperature175°C (TJ)
PackageTape & Reel (TR); Cut Tape (CT)
Vgs±20V
TechnologyMOSFET (Metal Oxide)
CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Vgs(th) (Max) @ id4V @ 250µA
Rds on (Max) @ id, vgs3.85mOhm @ 30A, 10V
Gate charge (Qg) (Max) @ vgs63 nC @ 10 V
Input capacitance (Ciss) (Max) @ vds3680 pF @ 25 V

Product details

The NP60N04VUK-E1-AY: The Nexperia NP60N04VUK--AY is a 40 V, 60 A N-channel MOSFET in the TO-252-3 (DPak) surface-mount package. It is specified for a junction temperature up to 175°C.

3.85 mOhm Rds(on) — conduction loss at 30 A

At 30 A and 10 V the Rds(on) is 3.85 mOhm. The gate can tolerate up to ±20 V.

Gate charge and switching speed

Total gate charge is 63 nC at 10 V. Input capacitance is 3680 pF at 25 V drain-source.

Thermal handling and package

The TO-252-3 (DPak) package has a large exposed tab that is electrically the drain. Power dissipation is 1.2 W in still air at 25°C ambient, but jumps to 105 W when the tab is soldered to a sufficient copper area on the PCB — the tab-to-ambient thermal resistance is what limits the real current. The 175°C junction rating gives headroom in high-ambient enclosures.

Frequently asked questions

What is the maximum drain current of the NP60N04VUK--AY?

The maximum continuous drain current is 60 A at a case temperature of 25°C. The actual current in a design depends on the PCB thermal management — the tab must be soldered to a sufficient copper area to keep the junction below 175°C.
