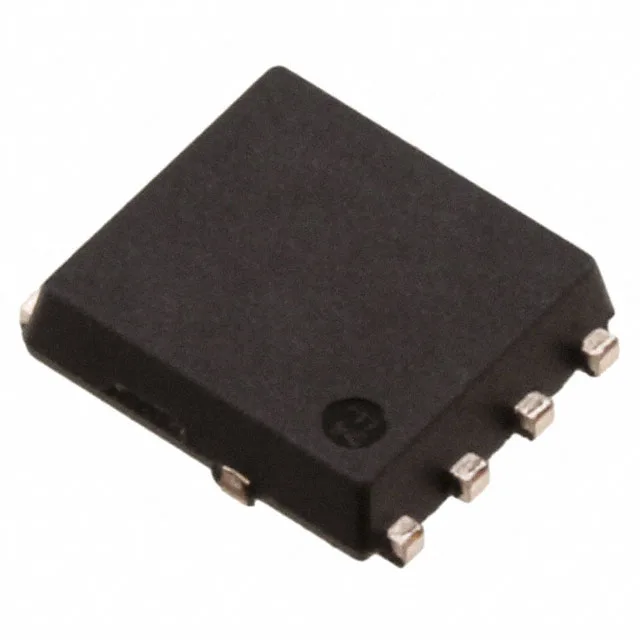

Renesas NP35N04YUG--AY, N-Channel MOSFET, 40 V Vdss, 35 A Id, 10 mOhm Rds(on) at 10 V Vgs, 54 nC Qg, 8-HSON package, 175°C Tj, Surface Mount, ROHS3 Compliant.
| Parameter | Value |
|---|---|
| FET type | N-Channel |
| Mounting type | Surface Mount |
| Drain to source voltage | 40 V |
| Drive voltage (Max rds on, min rds on) | 10V |
| Current - continuous drain (Id) @ 25°C | 35A (Tc) |
| Power dissipation | 1W (Ta), 77W (Tc) |
| Operating temperature | 175°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Case | 8-SMD, Flat Lead Exposed Pad |
| Vgs(th) (Max) @ id | 4V @ 250µA |
| Rds on (Max) @ id, vgs | 10mOhm @ 17.5A, 10V |
| Gate charge (Qg) (Max) @ vgs | 54 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 2850 pF @ 25 V |
The NP35N04YUG-E1-AY: Gate charge totals 54 nC at 10 V.
Rds(on) is 10 mOhm at 10 V gate drive. Gate charge is 54 nC at 10 V.
It is ROHS3 compliant, meeting the latest restriction-of-hazardous-substances directive for lead-free soldering processes.
