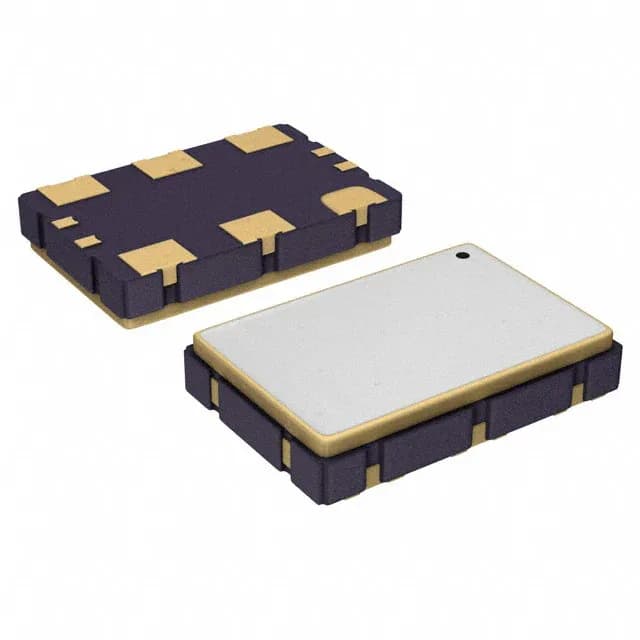

Renesas Electronics 8N4Q001FG-1078CDI — Clock & Timing ICs

8N4Q001FG-1078CDI Clock Oscillator, 100-400 MHz, 10-CLCC

MPN8N4Q001FG-1078CDI
End of Life

Renesas FemtoClock® NG, 8N4Q001FG-1078CDI, Type Clock Oscillator, quad-frequency 100MHz, 200MHz, 300MHz, 400MHz, 2.375V~2.625V supply, 155 mA, -40°C~85°C, 10-CLCC (7x5) surface mount.

$31.48Ref. price · indicative, final on quote
Renesas Electronics 8N4Q001FG-1078CDI datasheet (PDF)
Packaging10-CLCC
RoHSROHS3 Compliant
SeriesFemtoClock® NG
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

8N4Q001FG-1078CDI specifications
ParameterValue
TypeClock Oscillator
SeriesFemtoClock® NG
MountingSurface Mount
Voltage2.375V ~ 2.625V
Current - supply155 mA
Frequency100MHz, 200MHz, 300MHz, 400MHz
Operating temperature-40°C ~ 85°C
PackageTray
Case10-CLCC

Product details

Quad-frequency clock oscillator — one device, four output rates

The Renesas 8N4Q001FG-1078CDI is a quad-frequency clock oscillator from the FemtoClock® NG family. It delivers a choice of 100 MHz, 200 MHz, 300 MHz, or 400 MHz from a single device, selected via the frequency-control pins. The supply rail is 2.375 V to 2.625 V, drawing 155 mA typical.

Frequency agility without a PLL programming burden

Unlike a field-programmable PLL or VCXO that requires I²C/SPI configuration at power-up, this oscillator presents four pre-configured frequencies selected by digital logic levels.

Active, ROHS3, no end-of-life concern

It is ROHS3 compliant.

Mounting and handling notes

The 10-CLCC (7x5 mm) ceramic package is surface-mount. The ceramic body is hermetic, suited for environments where moisture sensitivity is a concern.

Frequently asked questions

Is 8N4Q001FG-1078CDI RoHS compliant?

Yes, it is ROHS3 compliant.

What is the equivalent of 8N4Q001FG-1078CDI?

The 8N4Q001FG-1078CDI8 is a tape-and-reel variant of the same device. The die, frequency set, package, and electrical specifications are identical — only the shipping medium differs (Tray vs. Tape & Reel). Check your assembly house preference before ordering.

What supply voltage does 8N4Q001FG-1078CDI require?

It operates on a 2.5 V rail with a tolerance of 2.375 V to 2.625 V. Do not connect to a 3.3 V or 1.8 V supply without regulation.

What frequencies does the 8N4Q001FG-1078CDI output?

It provides four selectable output frequencies: 100 MHz, 200 MHz, 300 MHz, and 400 MHz. The active frequency is chosen via the device's frequency-select pins.
