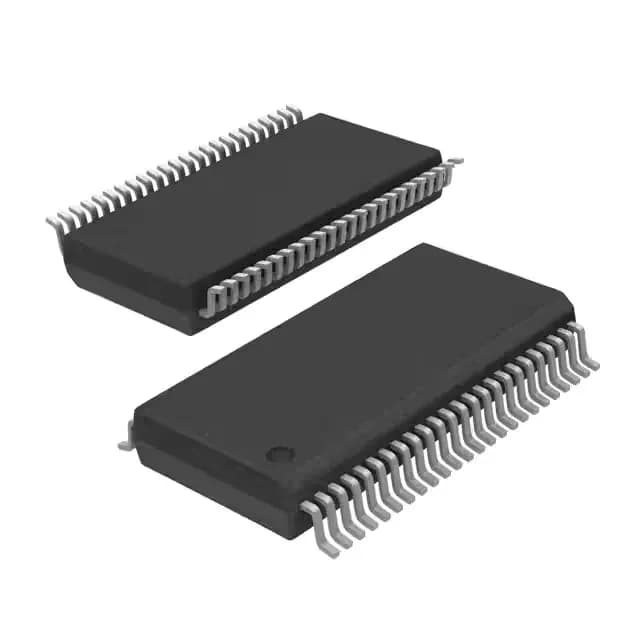

74ALVC162245PAG8 Transceiver, Non-Inverting, 3.6V, 48-TSSOP

MPN74ALVC162245PAG8
End of Life

Renesas 74ALVC162245PAG8, Series 74ALVC, Logic Type Transceiver Non-Inverting, Output Type 3-State, 2.7V–3.6V Supply, 2 Elements, 8 Bits per Element, 12mA/12mA or 24mA/24mA Output Current, -40°C to 85°C, 48-TSSOP.

$1.48Ref. price · indicative, final on quote
74ALVC162245PAG8 datasheet
Packaging48-TFSOP (0.240", 6.10mm Width)
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

74ALVC162245PAG8 Technical Specifications
ParameterValue
Series74ALVC
Logic typeTransceiver, Non-Inverting
Output type3-State
Mounting typeSurface Mount
Voltage2.7V ~ 3.6V
Current - output high, low12mA, 12mA; 24mA, 24mA
Operating temperature-40°C ~ 85°C (TA)
PackageTape & Reel (TR); Cut Tape (CT)
Case48-TFSOP (0.240\", 6.10mm Width)
Number of elements2
Number of bits per element8

Product details

Supply voltage and output drive — what they mean for the bus

The 2.7V–3.6V supply range is the first thing to check: this part is strictly a low-voltage device. It will not tolerate a 5V rail, so if your legacy backplane runs at 5V, you need a level translator or a 5V-tolerant family like 74FCT. The output drive is specified at two levels — 12mA/12mA and 24mA/24mA — depending on the supply and load conditions. For a heavily loaded bus with multiple fan-outs, the 24mA option keeps signal edges clean without adding external line drivers. On a lightly loaded point-to-point link, the 12mA setting saves a few milliamps of dynamic current.

Industrial temperature and package fit

The -40°C to 85°C rating covers most factory-floor and outdoor telecom cabinets. It is not an automotive-grade part.

Lifecycle and sourcing posture

The 74ALVC162245PAG8 carries an Active product status and is ROHS3 compliant. There is no NRND flag, no last-time-buy notice, and no official successor — it remains a current-production part suitable for new designs and BOM freeze. No LTB risk to plan for.

Frequently asked questions

Is 74ALVC162245PAG8 obsolete or nearing end of life?

No — the product status is Active. There is no end-of-life notice or last-time-buy schedule. It remains a current-production part.

What is the equivalent or alternative for 74ALVC162245PAG8?

A close functional peer is the 74FCT16245ATPAG8, which is also a 16-bit non-inverting transceiver with 3-state outputs in a 48-TSSOP package. The main difference: the 74FCT part runs at 4.5V supply versus the 74ALVC's 2.7V–3.6V range. If your design is 3.3V-only, the 74ALVC162245PAG8 is the correct fit; if you need 5V compatibility, the 74FCT16245ATPAG8 is the alternative.

Is 74ALVC162245PAG8 compatible with 5V logic inputs?

No — the supply voltage is 2.7V to 3.6V, and the part is not specified as 5V-tolerant. Applying 5V to the inputs may exceed the absolute maximum ratings. Use a level translator or select a 5V-rated family such as 74FCT.
