Intel 10M25DAF484A7G — FPGA / CPLD & Programmable Logic

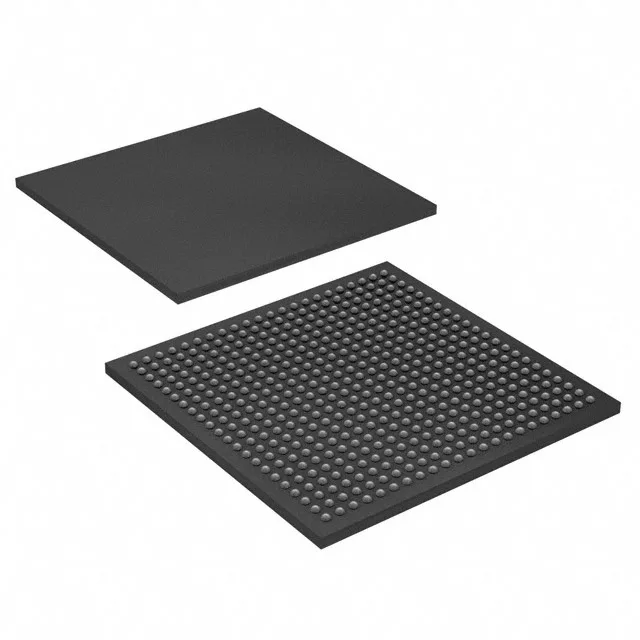

Intel 10M25DAF484A7G MAX 10 FPGA, 25K LE, 360 I/O

MPN10M25DAF484A7G
Active

Intel MAX® 10 series FPGA, 10M25DAF484A7G, 25,000 logic elements, 360 I/O, 691,200 total RAM bits, 1.15V–1.25V core supply, 484-BGA (23x23 mm), -40°C to 125°C junction temperature, Tray.

Intel 10M25DAF484A7G datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

10M25DAF484A7G specifications
ParameterValue
SeriesMAX® 10
MountingSurface Mount
Voltage1.15V ~ 1.25V
Operating temperature-40°C~125°C(TJ)
PackageTray
Number of i (O)360
Case484-BGA
Total RAM bits691200
Number of LABs (CLBs)1563
Number of logic elements (Cells)25000

Product details

The 10M25DAF484A7G packs 25,000 logic elements and 1,563 LABs/CLBs into a 23x23 mm 484-FBGA — enough density to absorb a moderate RISC-V soft core, a video scaler, or a multi-axis motion controller without reaching for a larger family. 360 user I/O in this footprint means the pin-to-logic ratio is high; you can route a 16-bit DDR memory bus, a parallel LCD interface, and a dozen SPI/I2C peripherals without starving the core.

On-chip memory and supply rails

691,200 total RAM bits (about 86 KB) sit in the M9K blocks — enough for small frame buffers, coefficient tables, or FIFO depth in a glue-logic application. The 484-FBGA (23x23 mm) has a 1.0 mm ball pitch — a 4-layer board with standard via-in-pad rules can fan out all 360 I/O; no HDI required.

A motor-drive controller sitting next to a hot heatsink or an outdoor base-station FPGA that sees 105°C ambient still has margin before the junction ceiling.

Frequently asked questions

What is the difference between 10M25DAF484A7G and 10M25DCF484A7G?

Both share the same logic density (25,000 LEs), I/O count (360), RAM (691,200 bits), and package (484-FBGA). The suffix 'C' vs 'A' typically denotes a different speed grade or temperature range; the 'C' variant may have a narrower commercial temperature range. Confirm the specific ordering code against your design's speed and temperature requirements.

Can 10M25DAF484A7G replace 10M16DAF484I7P?

The 10M25DAF484A7G offers 25,000 LEs vs 16,000 LEs, 360 I/O vs 320 I/O, and 691,200 RAM bits vs 562,176 RAM bits. Both are in the MAX 10 family and share the same 1.15V–1.25V core supply. A direct drop-in replacement depends on whether the extra logic, I/O, and temperature margin are acceptable for the target design.
