Intel 10M04SFE144I7G — FPGA / CPLD & Programmable Logic

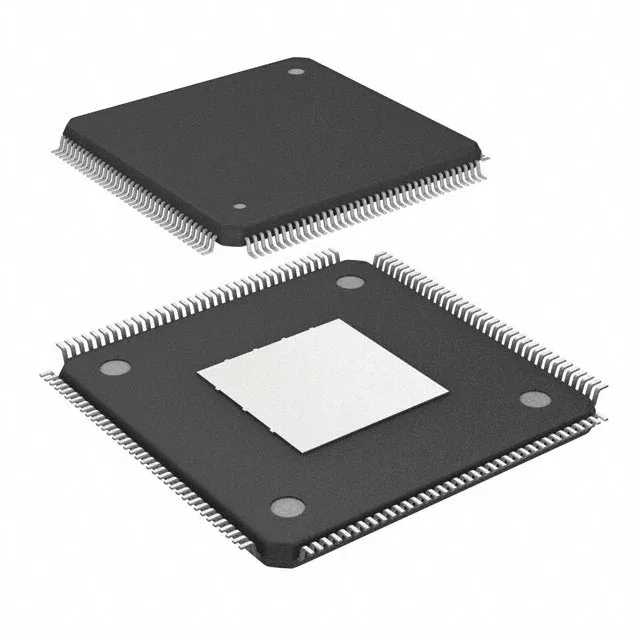

Intel 10M04SFE144I7G MAX 10 FPGA, 4000 LE, 101 I/O

MPN10M04SFE144I7G
Obsolete

Intel MAX 10 FPGA, 10M04SFE144I7G, 4000 logic elements, 101 I/O, 193536 RAM bits, 144-EQFP exposed pad, industrial temp.

$23.9400Ref. price · indicative, final on quote
Intel 10M04SFE144I7G datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

10M04SFE144I7G specifications
ParameterValue
SeriesMAX® 10
MountingSurface Mount
Voltage2.85V ~ 3.465V
Operating temperature-40°C ~ 100°C (TJ)
PackageTray
Number of i (O)101
Case144-LQFP Exposed Pad
Total RAM bits193536
Number of LABs (CLBs)250
Number of logic elements (Cells)4000

Product details

4000-logic-element FPGA in a 144-EQFP exposed-pad package

The 10M04SFE144I7G: The 193536 total RAM bits support moderate buffering and state storage for glue-logic or sensor-interface applications.

Obsolete — last-time-buy and replacement path

Intel has marked the 10M04SFE144I7G as Obsolete. The closest functional peer is the 10M04SCE144I7G — same 4000 logic elements, same 101 I/O count, same 193536 RAM bits, and same industrial temperature range, but in a different package variant (144-EQFP without the exposed pad). The 10M04SCE144A7G offers the same logic fabric with an extended temperature range up to 125°C, which may open a wider operating envelope for replacement qualification.

Board-fit and thermal considerations for the exposed pad

The 101 I/O count in a 144-pin package leaves 43 pins dedicated to power, ground, configuration, and clock — enough to route a 16-bit parallel bus plus control signals without starving the core supply rails.

Frequently asked questions

Is 10M04SFE144I7G obsolete?

Yes, Intel lists the 10M04SFE144I7G as Obsolete. No official successor order code is published, so replacement requires a pin-compatible peer or a board spin.

What is a direct replacement for 10M04SFE144I7G?

The closest functional replacement is the 10M04SCE144I7G — same 4000 logic elements, 101 I/O, 193536 RAM bits, and industrial temperature range, but in a 144-EQFP without the exposed thermal pad. The 10M04SCE144A7G extends the temperature range to 125°C.
