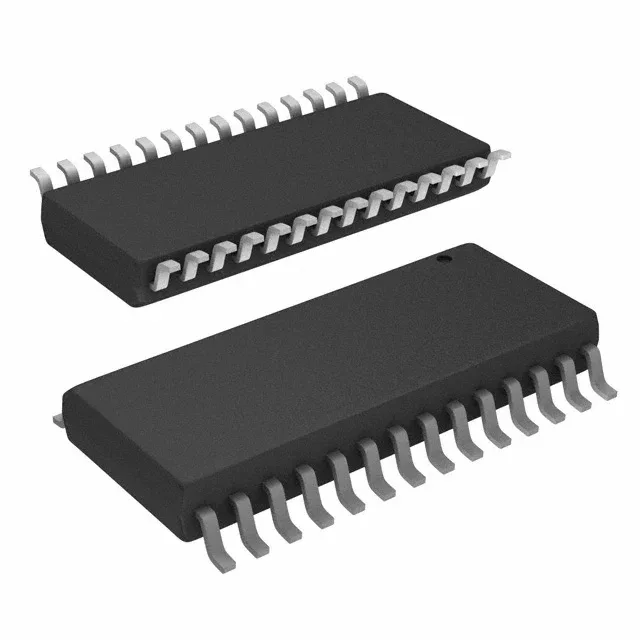

Infineon TLE72422GXUMA2 Current Source, 30mA, 28-SOIC

MPN TLE72422GXUMA2
End of Life Spot Stock · 24-48h Dispatch 100% Original Sealed

Infineon TLE72422GXUMA2 current source IC, 30 mA output, 5.5 V to 42 V input, low-side sensing, PG-DSO-28 package, -40 °C to 150 °C.

In Stock: 4,000 pcs
MOQ: 1 pcs
Logistics: DHL / FedEx DAP (Global Express · 3-7d) Russia & CIS DDP (Door-to-Door Cleared)
Dispatch: Shenzhen / HK
Unit Price (USD)
$13.19 / pc
Direct Purchase Ready
Volume Pricing Breaks Confirmed upon quotation
1+ pcs
$13.19
10+ pcs
$11.87
30+ pcs
$10.82
100+ pcs
$9.76
500+ pcs
$9.10
1,000+ pcs
$8.57
Working on a production BOM or have a target unit price? Submit Target Price
Buy Now

$13.19 / ea

4,000 in stock — maximum per order · 3–4 days lead time

$11.87 / ea from 10 pcs
Upload Full BOM List
100% Original Sealed 45x Microscope QC 30-Day Warranty · COC USD T/T & PI · DAP/DDP
[SPEC] Essential Parameters Snapshot Full Specifications (8)
Package / Case 28-SOIC (0.295", 7.50mm Width)

Full Technical Specifications

8 Parameters
TLE72422GXUMA2 specifications
Parameter / AttributeSpecification / Value
MountingSurface Mount
Voltage - input5.5V ~ 42V
Output current30mA
Operating temperature-40°C ~ 150°C
PackageTape & Reel (TR); Cut Tape (CT)
FunctionCurrent Source
Case28-SOIC (0.295\", 7.50mm Width)
Sensing methodLow-Side
[DESK] Shenzhen Spot Allocation · 2h Response

Need Immediate Spot Stock or Shortage Allocation for TLE72422GXUMA2?

Factory lead times blocking production? We lock verified brand-new original stock in Shenzhen within 2 hours.

Quote SLA 2 Hours
[01] Emergency Shortage 24-48h Shenzhen Dispatch

Direct access to Shenzhen floor inventory, franchised allocation buffers, and factory bonded stock to resolve line-down shutdowns.

[02] Industrial Packaging Tape & Reel / Tray / Tube

Standard factory-sealed packaging compliant with EIA-481 standards for automated high-speed SMT pick-and-place lines.

[03] WhatsApp QC Proof 45x Microscope QC Photos

High-resolution photos of original reel labels, 2D DataMatrix, and pin coplanarity sent via WhatsApp/Telegram before you release wire payment.

● USD Wire Transfer (SWIFT T/T) · DAP Express / DDP Delivery
WhatsApp Inquiry Request Spot Quote

Technical Details & Description

28-SOIC current source for solenoid and valve control

The TLE72422GXUMA2 is a low-side current source IC from Infineon, delivering a regulated 30 mA output across a 5.5 V to 42 V input range. The 28-SOIC (PG-DSO-28) wide-body package integrates the current regulation loop, so the external BOM stays at a sense resistor and the load solenoid or valve — no separate op-amp or comparator needed.

Input range and thermal envelope

The 5.5 V to 42 V input span covers both 12 V and 24 V automotive rails with margin for load-dump transients. The 30 mA regulated output is set by an external resistor; the low-side sensing method means the load connects between the supply and the IC's drain pin, with the current returning through the sense resistor to ground.

Frequently asked questions

What is the TLE72422GXUMA2 used for?

It is a low-side current source IC designed to regulate current through a solenoid, valve, or actuator load. The 30 mA output and 5.5 V to 42 V input range suit it for automotive transmission control, fuel injection, and industrial proportional-valve drivers where the load current must be held constant regardless of supply variation.

What package does the TLE72422GXUMA2 come in?

It is offered in Tape & Reel and Cut Tape options for pick-and-place assembly.
