Active production — BOM-fit note
The 1EDN7512BXTSA1: This is a single-channel low-side driver designed for N-channel MOSFETs, accepting both inverting and non-inverting input signals from a 4.5V to 20V supply rail.
4A/8A peak output with 6.5ns rise time
Peak output current is rated 4A source and 8A sink — the asymmetric sink strength pulls the gate down faster than it charges, which helps clamp the Miller plateau during turn-off. Typical rise and fall times are 6.5 ns and 4.5 ns respectively, supporting switching frequencies where the dead-time budget is tight and the gate charge of the MOSFET is moderate.
SOT-23-5 package and temperature grade

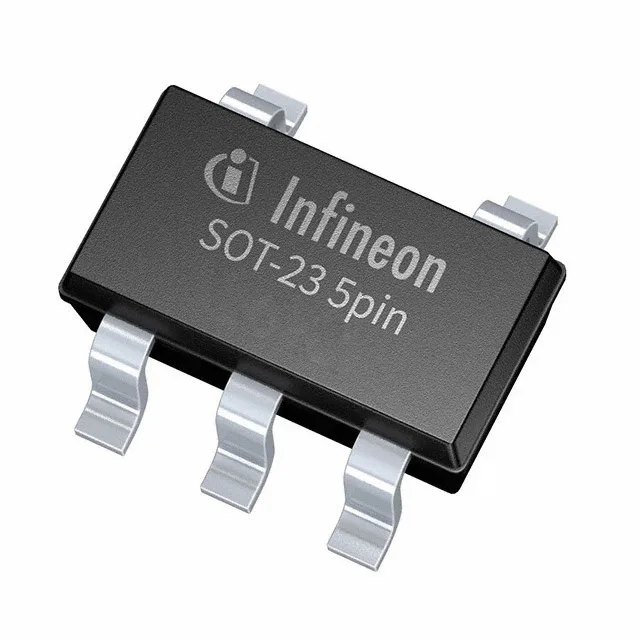

Housed in a PG-SOT23-5-1 (SC-74A, SOT-753) surface-mount package — the 5-pin footprint keeps the gate-drive loop short when placed close to the MOSFET's gate-source terminals.
