Infineon Technologies 2EDN7533RXTMA1 — Analog & Data Acquisition
Infineon Technologies

Infineon 2EDN7533RXTMA1 EiceDRIVER, 5A Peak, 8-TSSOP

MPN2EDN7533RXTMA1
End of Life

Infineon Technologies EiceDRIVER™ low-side dual MOSFET driver, 2EDN7533RXTMA1, 5A peak output, 4.5-20V supply, 8-TSSOP/8-MSOP package, ROHS3.

$1.17Ref. price · indicative, final on quote
2EDN7533RXTMA1 datasheet
Packaging8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

2EDN7533RXTMA1 Technical Specifications
ParameterValue
SeriesEiceDRIVER™
Gate typeN-Channel, P-Channel MOSFET
Input typeInverting
Channel typeIndependent
Mounting typeSurface Mount
Voltage4.5V ~ 20V
Logic voltage - VIL, VIH1.4V, 1.9V
Current - peak output (Source, sink)5A, 5A
Operating temperature-40°C ~ 150°C (TJ)
PackageTape & Reel (TR); Cut Tape (CT)
Case8-TSSOP, 8-MSOP (0.118\", 3.00mm Width)
Number of drivers2
Driven configurationLow-Side
Rise (Fall time)8.6ns, 6ns

Product details

5 A peak drive — gate charge handling

The 2EDN7533RXTMA1: Rated for 5 A peak source and 5 A peak sink current, this driver can charge and discharge the gate capacitance of medium-power N-channel and P-channel MOSFETs in hard-switched topologies. The 8.6 ns typical rise time and 6 ns typical fall time keep cross-conduction losses low in DC-DC converters and motor-drive stages switching at several hundred kilohertz.

Package and compliance

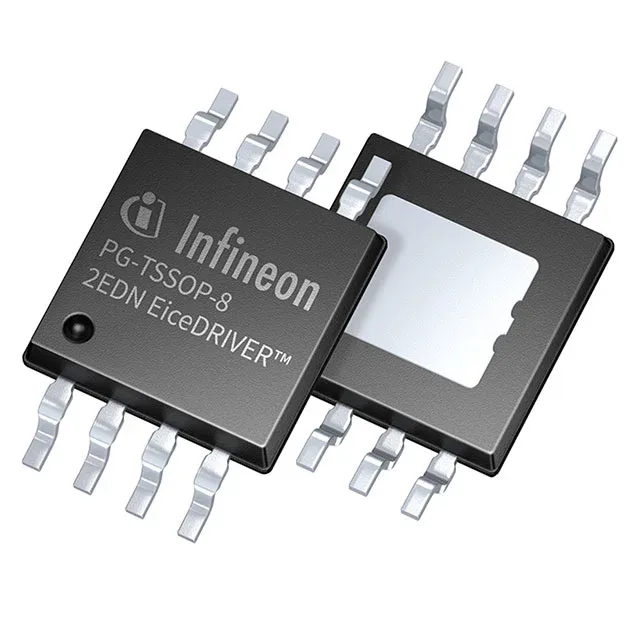

Supplied in an 8-TSSOP / 8-MSOP package (PG-TSSOP-8 supplier device package), surface-mount, with Tape & Reel and Cut Tape options. ROHS3 compliant, with no exemption-based restrictions for EU or global RoHS markets.
