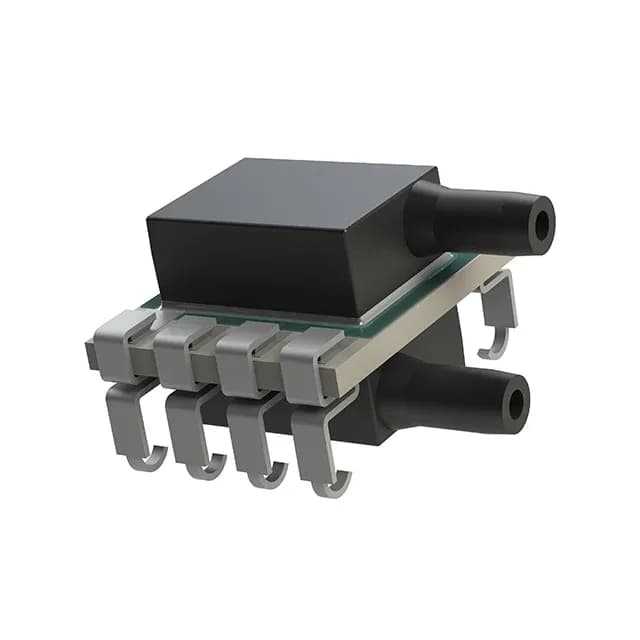

BPS110-AG01P0-2DG - Bourns Inc.
MPN BPS110-AG01P0-2DG
Active
Spot Stock · 24-48h Dispatch
100% Original Sealed
SENSOR 1PSIG 0.087" 4.5V 8SMD
In Stock: 250 pcs
MOQ: 1 pcs
Logistics: DHL / FedEx DAP (Global Express · 3-7d)
Russia & CIS DDP (Door-to-Door Cleared)
Dispatch: Shenzhen / HK
Unit Price (USD)
$40.75 / pc
Direct Purchase Ready
Volume Pricing Breaks Confirmed upon quotation
1+ pcs
$40.75
10+ pcs
$36.68
30+ pcs
$33.42
100+ pcs
$30.16
Working on a production BOM or have a target unit price? Submit Target Price
[SPEC] Essential Parameters Snapshot Full Specifications (17)
Package / Case 8-SMD, J-Lead, Dual Ports, Same Side
Supply Voltage 2.7V ~ 5.5V
Full Technical Specifications
17 Parameters| Parameter / Attribute | Specification / Value |
|---|---|
| Series | BPS110 |
| Output type | Analog Voltage |
| Mounting | Surface Mount |
| Pressure type | Gauge |
| Supply voltage | 2.7V ~ 5.5V |
| Operating temperature | -40°C ~ 85°C |
| Output | 0.5 V ~ 4.5 V |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Accuracy | ±0.25% |
| Features | Amplified Output |
| Port size | Male - 0.087\" (2.2mm) Tube, Dual |
| Port style | Barbed |
| Applications | Board Mount |
| Case | 8-SMD, J-Lead, Dual Ports, Same Side |
| Maximum pressure | 5PSI (34.47kPa) |
| Termination style | J Lead |
| Operating pressure | 1PSI (6.89kPa) |
