What the 3750Vrms isolation and 4-SOIC package mean for your board

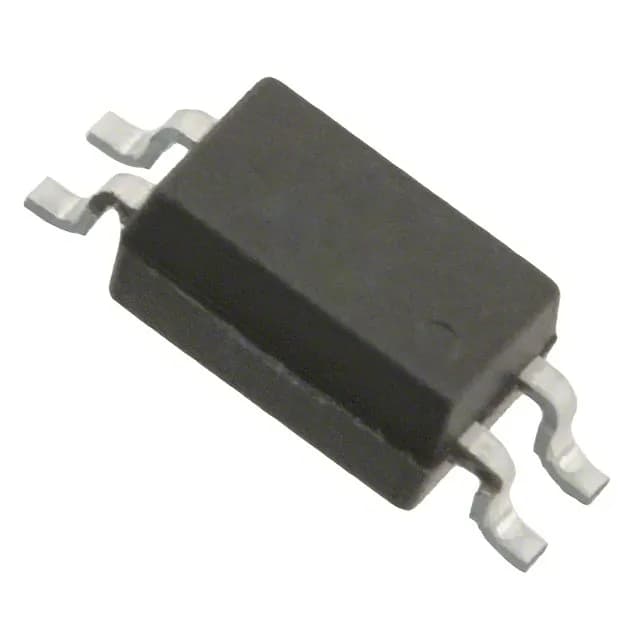

The FODM217BR2 is a single-channel, DC-input, transistor-output optoisolator in a surface-mount package. The 3750Vrms isolation rating is the key safety spec — it provides basic isolation for low-voltage signal paths in industrial controls, PLC digital inputs, and auxiliary power supplies where the galvanic barrier separates a 24V field side from a 3.3V or 5V logic side. The 4-SOP (supplier device package) footprint is compact enough for dense PCB layouts but still hand-solderable for prototyping. The surface-mount form factor suits automated assembly lines; the package is available in Tape & Reel (TR) or Cut Tape (CT) options, so both production reels and small-quantity prototypes are covered.
Current transfer ratio and switching speed — design margin decisions
The CTR is specified at 130% minimum and 260% maximum when the LED is driven at 5 mA. That 2:1 spread means you need to size the LED resistor so the output transistor saturates even at the low end of the CTR range. At the high end, the output may saturate with less than 2 mA of LED current, which helps reduce power draw in battery-powered or low-standby designs. Rise and fall times are both 3 µs typical, with turn-on and turn-off times also 3 µs typical. The 80V output maximum and 50 mA output current give enough headroom for driving a small relay coil or a logic-level MOSFET gate through a series resistor.
Active production and sourcing reality
It is ROHS3 compliant, covering the EU RoHS directive including the latest exemptions. The part is available through multiple distribution channels. Pricing and lead time are confirmed at quote time against your BOM quantity. No single-source dependency — onsemi runs this series on standard wafer fab and assembly lines, so supply is stable for volume commitments.
