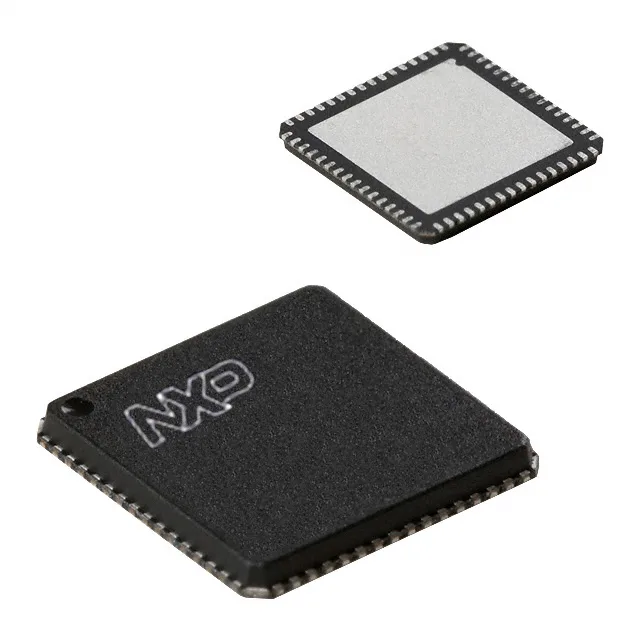

LPC2132FHN64/01,55
MPNLPC2132FHN64/01,55
Obsolete
[LLM API error — product skipped, no content generated]
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | LPC2100 |
| Mounting | Surface Mount |
| Oscillator type | Internal |
| Program memory type | FLASH |
| Voltage - supply (Vcc (Vdd)) | 3V ~ 3.6V |
| Operating temperature | -40°C ~ 85°C (TA) |
| Speed | 60MHz |
| Package | Tray |
| RAM size | 16K x 8 |
| Core size | 16/32-Bit |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Connectivity | I²C, Microwire, SPI, SSI, SSP, UART/USART |
| Number of i (O) | 47 |
| Core processor | ARM7® |
| Case | 64-VFQFN Exposed Pad |
| Data converters | A/D 8x10b; D/A 1x10b |
| Program memory size | 64KB (64K x 8) |
Frequently asked questions
Does NXP list a direct successor or pin-compatible replacement for the LPC2132?
No official NXP successor order code or cross-reference is listed for this part. The LPC2100 series has been superseded by NXP's Cortex-M families (LPC1000, LPC17xx), but those are not pin-compatible and require PCB and firmware changes.
What is the clock speed of the LPC2132FHN64/01,55?
The part is rated at 60MHz, driven by its internal oscillator with no external clock multiplier stage.
What serial interfaces does the LPC2132FHN64/01,55 support?
The MCU includes UART/USART, SPI, I²C, Microwire, SSP, and SSI — a broad mix covering the common industrial and consumer serial protocols of its era.
