1N6103A
Microchip Technology
Through HoleBulk-55°C~175°C(TJ)
Ref. price$14.0250
Lead time on requestGet quote
1N61 TVS & Protection Diodes
215 variants · Microchip Technology
About the 1N61 TVS & Protection Diodes
The Microchip Technology 1N61 TVS & Protection Diodes series groups 215 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common applications of General Purpose, bidirectional channels of 1 and capacitance @ frequency of -. Variants differ by case, current - peak pulse (10/1000μs) and mounting, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- B, Axial · SQ-MELF, B
- Current - peak pulse (10/1000μs)
- 32.78A · 34.5A · 35.44A · 37.3A · 39.24A · 41.3A · 42.37A · 44.6A
- Mounting
- Surface Mount · Through Hole
- Operating temperature
- -55°C ~ 175°C (TJ) · -55°C~175°C(TJ)
- Package
- Bulk · Tape & Reel (TR)
- Voltage - breakdown
- 6.77V · 7.13V · 7.4V · 7.79V · 8.22V · 8.65V · 9.03V · 9.5V
- Voltage - clamping (Max) @ ipp
- 11.2V · 11.76V · 12.1V · 12.71V · 13.4V · 14.07V · 14.5V · 15.23V
- Voltage - reverse standoff
- 5.7V · 6.2V · 6.9V · 7.6V
Shared specifications
- Applications
- General Purpose
- Bidirectional channels
- 1
- Capacitance @ frequency
- -
- Power - peak pulse
- 500W
- Power line protection
- No
- Type
- Zener
Variant comparison

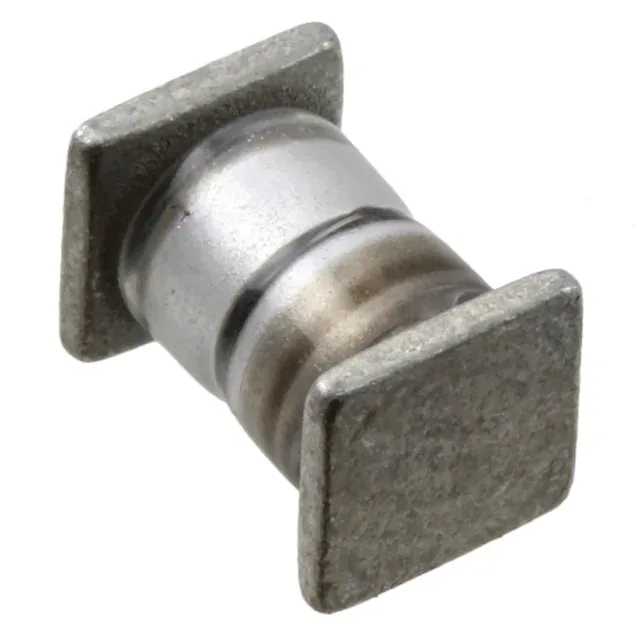

| Parameter | 1N6103A | 1N6103AUS | 1N6103AUS/TR | 1N6103US | 1N6104 | 1N6104A |
|---|---|---|---|---|---|---|
| Case | B, Axial | SQ-MELF, B | SQ-MELF, B | SQ-MELF, B | B, Axial | B, Axial |
| Current - peak pulse (10/1000μs) | 44.6A | 44.6A | 44.6A | 42.37A | 39.24A | 41.3A |
| Mounting | Through Hole | Surface Mount | Surface Mount | Surface Mount | Through Hole | Through Hole |
| Operating temperature | -55°C~175°C(TJ) | -55°C~175°C(TJ) | -55°C ~ 175°C (TJ) | -55°C~175°C(TJ) | -55°C~175°C(TJ) | -55°C~175°C(TJ) |
| Package | Bulk | Bulk | Tape & Reel (TR) | Bulk | Bulk | Bulk |
| Voltage - breakdown | 7.13V | 7.13V | 7.13V | 6.77V | 7.4V | 7.79V |
| Voltage - clamping (Max) @ ipp | 11.2V | 11.2V | 11.2V | 11.76V | 12.71V | 12.1V |
| Voltage - reverse standoff | 5.7V | 5.7V | 5.7V | 5.7V | 6.2V | 6.2V |
Request a quote on any 1N61 TVS & Protection Diodes part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
