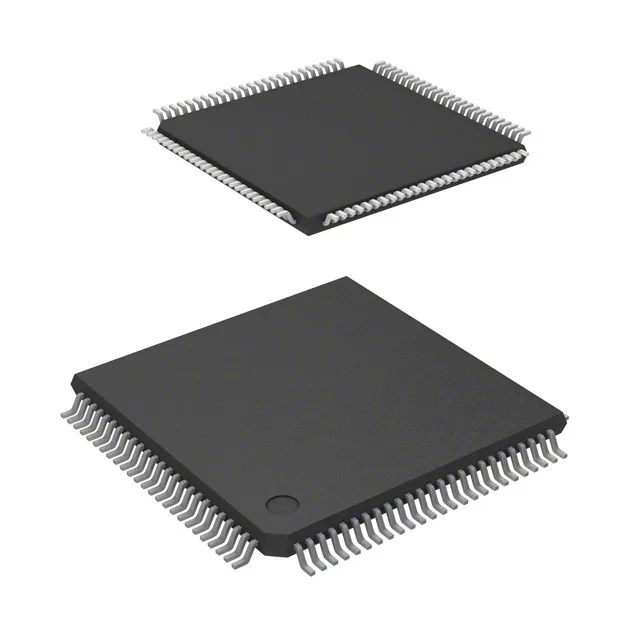

Microchip A3P125-VQ100 ProASIC3 FPGA, 125K gates, 71 I/O

MPNA3P125-VQ100
End of Life

Microchip Technology ProASIC3 FPGA, A3P125-VQ100, 125000 gates, 71 I/O, 36864 bits RAM, 100-TQFP, Tray, Surface Mount.

$13.28Ref. price · indicative, final on quote
Packaging100-TQFP
StockIn Stock (21)
Lead timeIn Stock wk
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

A3P125-VQ100 Technical Specifications
ParameterValue
SeriesProASIC3
Mounting typeSurface Mount
Voltage1.425V ~ 1.575V
Operating temperature0°C ~ 85°C (TJ)
PackageTray
Number of i (O)71
Case100-TQFP
Total RAM bits36864
Number of gates125000

Product details

125K-gate ProASIC3 in a 100-TQFP

The A3P125-VQ100 is a Microchip ProASIC3 FPGA with 125000 system gates and 71 user I/O, packed into a 100-TQFP (14x14 mm) body. It carries 36864 bits of embedded RAM, enough for small FIFO buffers or register files in glue-logic or state-machine roles.

Supply and temperature — 1.5 V core, 0 to 85 °C

Core supply is 1.425 V to 1.575 V — a tight 1.5 V nominal rail. The operating temperature range is 0 °C to 85 °C (TJ), so it is specified for commercial/industrial ambient environments but not extended or automotive. If the board sits in a ventilated enclosure or a conditioned space, this part fits without derating worry.

RoHS non-compliant — legacy BOMs only

This variant is RoHS non-compliant. If your assembly line or customer spec requires RoHS-10/6 exemption-free material, the A3P125-VQ100 is not the right pick. For legacy or military-contract builds that still run tin-lead solder, it is a direct fit.

100-TQFP — what the footprint means on the bench

That pitch is fine-pitch but hand-solderable with a decent iron and flux — no hot-air station required for a careful rework tech. The exposed pad is not present (TQFP has no centre pad), so all 71 I/O route to the perimeter. Orientation is unambiguous: pin 1 chamfer on the top-left corner as you read the marking.

Frequently asked questions

What is the closest pin-compatible alternative to the A3P125-VQ100 in the ProASIC3 family?

Within the same 100-VQFP footprint, the ProASIC3 family includes higher-density siblings like the A3P250 and A3P400 in the same package. Those parts share the same pinout for the core supply and I/O banks, but the gate count and RAM increase. A direct swap without a board spin is possible if the design has headroom on the I/O count and the configuration bitstream fits the larger device.

What compliance documentation does Microchip provide for the A3P125-VQ100?

The part is RoHS non-compliant. For projects requiring RoHS exemption documentation, contact Microchip directly or source through a distributor that can provide the manufacturer's declaration.
