TPSA106K010T1800
KYOCERA AVX
1.8Ohm @ 100kHz10 µFTape & Reel (TR) Cut Tape (CT)
Ref. price$0.5100
Lead time on requestGet quote
KYOCERA AVX TPSA Series
117 variants · KYOCERA AVX
About the KYOCERA AVX TPSA Series
The KYOCERA AVX TPSA Series series groups 117 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common case of 1206 (3216 Metric), failure rate of - and features of General Purpose. Variants differ by capacitance, ESR and lifetime, so you can match the exact capacitance your application requires using the selection guide below.
Select a variant by
- Capacitance
- 0.15 µF · 0.68 µF · 1 µF · 2.2 µF · 3.3 µF · 4.7 µF · 6.8 µF · 10 µF · 22 µF
- ESR
- 1Ohm · 1.4Ohm · 1.5Ohm · 1.8Ohm · 1.8Ohm @ 100kHz · 3Ohm · 3.5Ohm · 6Ohm · 9Ohm · 300mOhm @ 100kHz · 900mOhm
- Lifetime
- - · 2000 Hrs @ 125°C
- Operating temperature
- -55°C ~ 125°C · -55°C~125°C
- Package
- Tape & Reel (TR) · Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
- Tolerance
- ±10% · ±20%
- Voltage - rated
- 6.3 V · 10 V · 16 V · 20 V · 25 V · 35 V · 50 V
Shared specifications
- Case
- 1206 (3216 Metric)
- Failure rate
- -
- Features
- General Purpose
- Height - seated
- 0.071\" (1.80mm)
- Lead spacing
- -
- Manufacturer size code
- A
- Mounting
- Surface Mount
- Size (Dimension)
- 0.126\" L x 0.063\" W (3.20mm x 1.60mm)
- Type
- Molded
Variant comparison

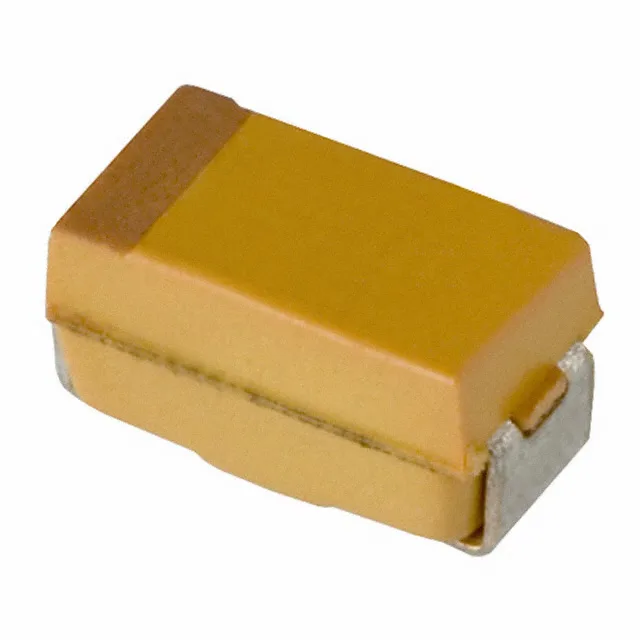

| Parameter | TPSA106K010T1800 | TPSA226K006R0300 | TPSA106K006R1500 | TPSA475K010R1400 | TPSA106K010H0900 | TPSA154K050R9000 |
|---|---|---|---|---|---|---|
| Capacitance | 10 µF | 22 µF | 10 µF | 4.7 µF | 10 µF | 0.15 µF |
| ESR | 1.8Ohm @ 100kHz | 300mOhm @ 100kHz | 1.5Ohm | 1.4Ohm | 900mOhm | 9Ohm |
| Lifetime | - | 2000 Hrs @ 125°C | - | - | - | - |
| Operating temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C~125°C | -55°C~125°C |
| Package | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage - rated | 10 V | 6.3 V | 6.3 V | 10 V | 10 V | 50 V |
Request a quote on any KYOCERA AVX TPSA Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
