Infineon Technologies IRF5 Series

10 variants · Infineon Technologies

About the Infineon Technologies IRF5 Series

The Infineon Technologies IRF5 Series series groups 10 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common technology of MOSFET (Metal Oxide). Variants differ by case, current - continuous drain (Id) @ 25°C and drain to source voltage, so you can match the exact case your application requires using the selection guide below.

Select a variant by

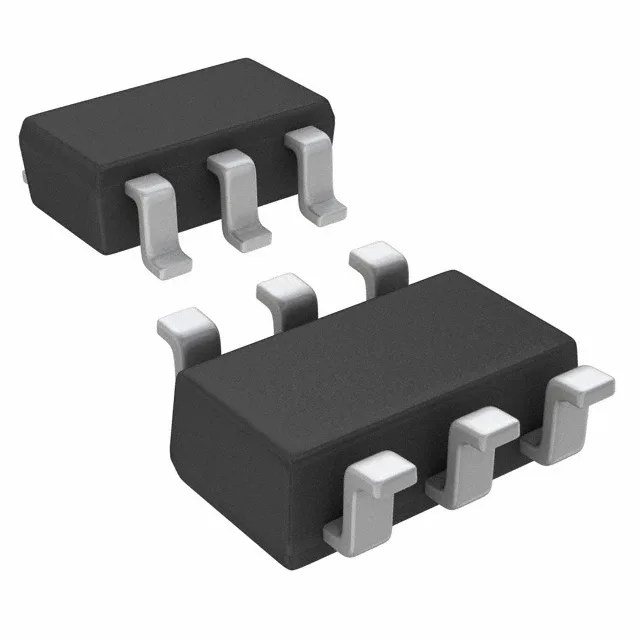

Case: SOT-23-6 Thin, TSOT-23-6 · TO-220-3 · TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Current - continuous drain (Id) @ 25°C: 3.4A (Ta) · 9.7A (Tc) · 17A (Tc) · 38A (Tc) · 40A (Tc) · 600mA (Ta) · 900mA (Ta)
Drain to source voltage: 40 V · 100 V · 150 V · 200 V
Drive voltage (Max rds on, min rds on): 4.5V, 10V · 10V
FET type: N-Channel · P-Channel
Gate charge (Qg) (Max) @ vgs: 3.9 nC @ 10 V · 6.8 nC @ 10 V · 25 nC @ 10 V · 37 nC @ 10 V · 180 nC @ 10 V · 230 nC @ 10 V
Input capacitance (Ciss) (Max) @ vds: 88 pF @ 25 V · 330 pF @ 25 V · 920 pF @ 25 V · 1110 pF @ 25 V · 2700 pF @ 25 V · 2780 pF @ 25 V
Mounting: Surface Mount · Through Hole

Shared specifications

Technology: MOSFET (Metal Oxide)

Variant comparison

Parameter	IRF5210STRLPBF	IRF5801TRPBF	IRF520NPBF	IRF5210PBF	IRF530NPBF	IRF530NSTRLPBF
Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB	SOT-23-6 Thin, TSOT-23-6	TO-220-3	TO-220-3	TO-220-3	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Current - continuous drain (Id) @ 25°C	38A (Tc)	600mA (Ta)	9.7A (Tc)	40A (Tc)	17A (Tc)	17A (Tc)
Drain to source voltage	100 V	200 V	100 V	100 V	100 V	100 V
Drive voltage (Max rds on, min rds on)	10V	10V	10V	10V	10V	10V
FET type	P-Channel	N-Channel	N-Channel	P-Channel	N-Channel	N-Channel
Gate charge (Qg) (Max) @ vgs	230 nC @ 10 V	3.9 nC @ 10 V	25 nC @ 10 V	180 nC @ 10 V	37 nC @ 10 V	37 nC @ 10 V
Input capacitance (Ciss) (Max) @ vds	2780 pF @ 25 V	88 pF @ 25 V	330 pF @ 25 V	2700 pF @ 25 V	920 pF @ 25 V	920 pF @ 25 V
Mounting	Surface Mount	Surface Mount	Through Hole	Through Hole	Through Hole	Surface Mount

Request a quote on any Infineon Technologies IRF5 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
