Infineon Technologies XMC4200F64F256BAXQMA1 — Microcontrollers & Processors (MCU / MPU / DSP)

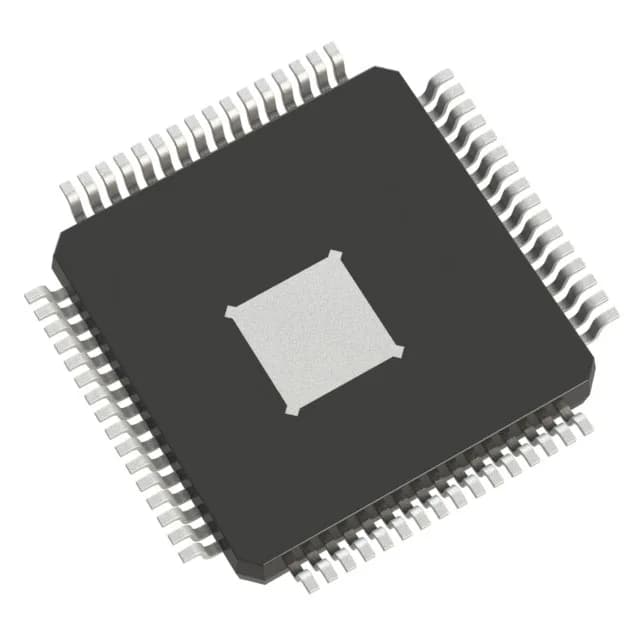

Infineon XMC4200F64F256BAXQMA1 ARM Cortex-M4 MCU, 80 MHz

MPNXMC4200F64F256BAXQMA1
End of Life

Infineon XMC4000 series, XMC4200F64F256BAXQMA1, ARM Cortex-M4 32-bit MCU, 80 MHz, 256KB Flash, 40K x 8 RAM, CAN/I²C/SPI/UART/USB, 35 I/O, 64-LQFP exposed pad, -40°C to 85°C.

$8.06Ref. price · indicative, final on quote
Infineon Technologies XMC4200F64F256BAXQMA1 datasheet (PDF)
Packaging64-LQFP Exposed Pad
RoHSROHS3 Compliant
SeriesXMC4000
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

XMC4200F64F256BAXQMA1 specifications
ParameterValue
SeriesXMC4000
MountingSurface Mount
Oscillator typeInternal
Program memory typeFLASH
Voltage - supply (Vcc (Vdd))3.13V ~ 3.63V
Operating temperature-40°C ~ 85°C (TA)
Speed80MHz
PackageTray
RAM size40K x 8
Core size32-Bit Single-Core
PeripheralsDMA, I²S, LED, POR, PWM, WDT
ConnectivityCANbus, I²C, LINbus, SPI, UART/USART, USB
Number of i (O)35
Core processorARM® Cortex®-M4
Case64-LQFP Exposed Pad
Data convertersA/D 16x12b; D/A 2x12b
Program memory size256KB (256K x 8)

Product details

80 MHz Cortex-M4 with 256 KB Flash — what it means for a motor-drive or industrial I/O design

The Infineon XMC4200F64F256BAXQMA1 is a 32-bit ARM Cortex-M4 MCU from the XMC4000 series, clocked at 80 MHz with 256 KB Flash and 40K x 8 RAM. It targets industrial control applications — motor drives, PLC I/O modules, and fieldbus gateways — where the Cortex-M4 DSP and FPU handle real-time control loops and signal conditioning. The 35 I/O pins in a 64-LQFP exposed-pad package keep the board footprint compact for space-constrained terminal blocks or drive stages. On-chip peripherals include DMA, PWM, WDT, and a 16-channel 12-bit ADC plus dual 12-bit DAC, covering analog feedback and sensor acquisition without external converters.

Frequently asked questions

What core does XMC4200F64F256BAXQMA1 use?

It uses an ARM Cortex-M4 core, 32-bit single-core, running at 80 MHz.

Is XMC4200F64F256BAXQMA1 RoHS compliant?

Yes, it is ROHS3 compliant.

What is the equivalent part for XMC4200F64F256BAXQMA1?

The closest functional sibling in the XMC4000 family is the XMC4800F100F1024AAXQMA1, which adds Ethernet, EBI/EMI, and 144 MHz operation with 1 MB Flash. For a lower-cost alternative without Ethernet, the XMC4200 itself is the baseline; there is no pin-compatible second source outside the Infineon XMC4000 series.
