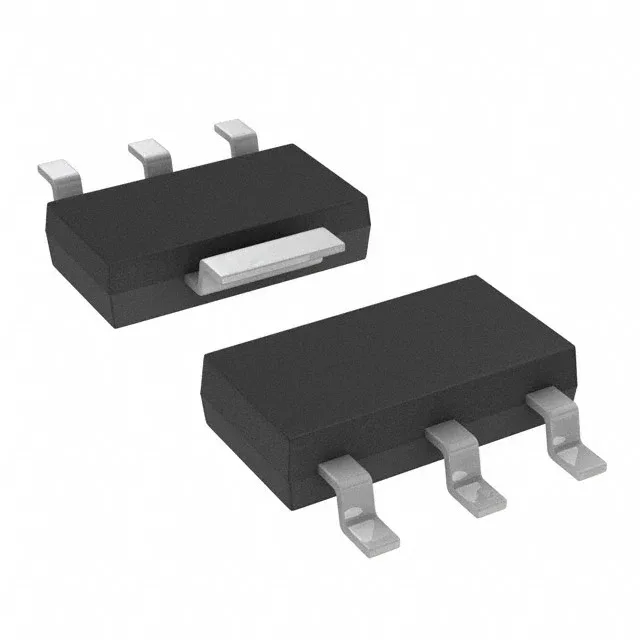

Infineon ITS4200SMEPHUMA1 High-Side Switch, 1.4A, SOT223-4

MPNITS4200SMEPHUMA1
End of Life

Infineon Technologies ITS4200SMEPHUMA1 high-side power switch, N-channel, 1.4A max output, 150mOhm Rds(on), 11V-45V load, PG-SOT223-4 package, Tape & Reel.

$1.82Ref. price · indicative, final on quote
ITS4200SMEPHUMA1 datasheet
PackagingTO-261-4, TO-261AA
StockIn Stock (20)
Lead timeIn Stock wk
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

ITS4200SMEPHUMA1 Technical Specifications
ParameterValue
Output typeN-Channel
Switch typeGeneral Purpose
Mounting typeSurface Mount
Voltage - load11V ~ 45V
Voltage - supply (Vcc (Vdd))Not Required
Current - output1.4A
Number of outputs1
InterfaceOn/Off
Operating temperature-40°C ~ 125°C (TJ)
PackageTape & Reel (TR); Cut Tape (CT)
Rds on150mOhm
CaseTO-261-4, TO-261AA
Fault protectionCurrent Limiting (Fixed), Over Temperature, Over Voltage
Output configurationHigh Side
Ratio - Input:Output1:1

Product details

Active high-side switch in SOT223-4

The Infineon ITS4200SMEPHUMA1 is an active-production single-channel high-side power switch in the PG-SOT223-4 package, designed for general-purpose on/off switching of resistive and inductive loads up to 1.4 A. Rated for load voltages from 11 V to 45 V, it does not require a separate Vcc supply — the load rail powers the internal gate drive, simplifying the BOM for automotive and industrial 12 V and 24 V systems.

1.4 A output with integrated protection

The 150 mOhm typical Rds(on) limits conduction loss: at 1 A the dissipation is 150 mW, well within the SOT223-4 thermal budget at 85 °C ambient with reasonable copper area.

PG-SOT223-4 board-fit and temp grade

Surface-mount in the TO-261-4 / TO-261AA outline (PG-SOT223-4), the ITS4200SMEPHUMA1 shares the standard SOT223 footprint — the tab is the drain connection and must be soldered to the output copper pour for thermal relief.

Compliance and procurement posture

No pin-compatible second-source is listed in the manufacturer's cross-reference.
