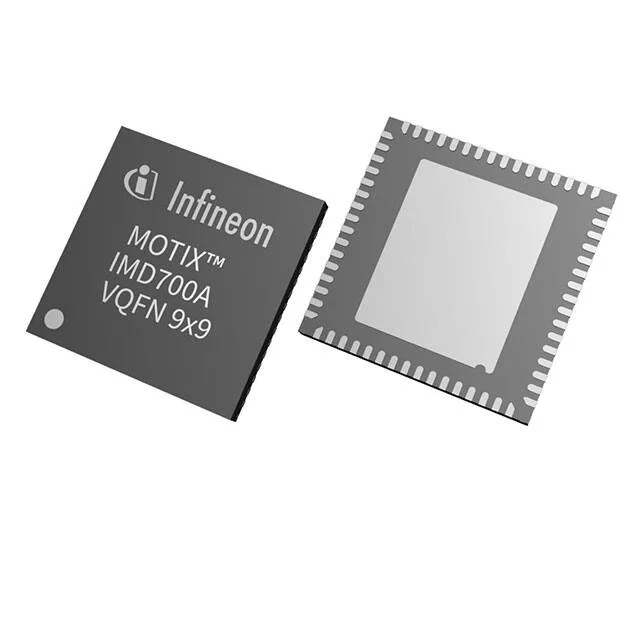

Infineon Technologies MOTIX™ series, 3-Phase N-Channel MOSFET gate driver, IMD700AQ064X128AAXUMA1, 1.5A peak output, 5.5V-60V supply, PG-VQFN-64-8 package.
| Parameter / Attribute | Specification / Value |
|---|---|
| Series | MOTIX™ |
| Gate type | N-Channel MOSFET |
| Input type | Non-Inverting |
| Channel type | 3-Phase |
| Mounting | Surface Mount |
| Supply voltage | 5.5V ~ 60V |
| Logic voltage - VIL, VIH | 1.045V, 3.85V |
| Current - peak output (Source, sink) | 1.5A, 1.5A |
| Operating temperature | -40°C ~ 115°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Case | 64-WFQFN Exposed Pad |
| Number of drivers | 3 |
| Driven configuration | Half-Bridge |
Sibling variants, package options, and speed/density grades in this Infineon Technologies semiconductor series. Active Shenzhen warehouse allocation and rapid 24-48h dispatch.
The Infineon IMD700AQ064X128AAXUMA1 is a 3-phase N-channel MOSFET gate driver from the MOTIX™ series, designed to drive half-bridge configurations in a compact 64-WFQFN exposed pad package (PG-VQFN-64-8).
The 1.5 A peak source/sink current determines the gate charge delivery rate — for a 60 nC MOSFET gate, the driver charges it in roughly 40 ns, setting the minimum transition time and thus the switching loss per edge.
