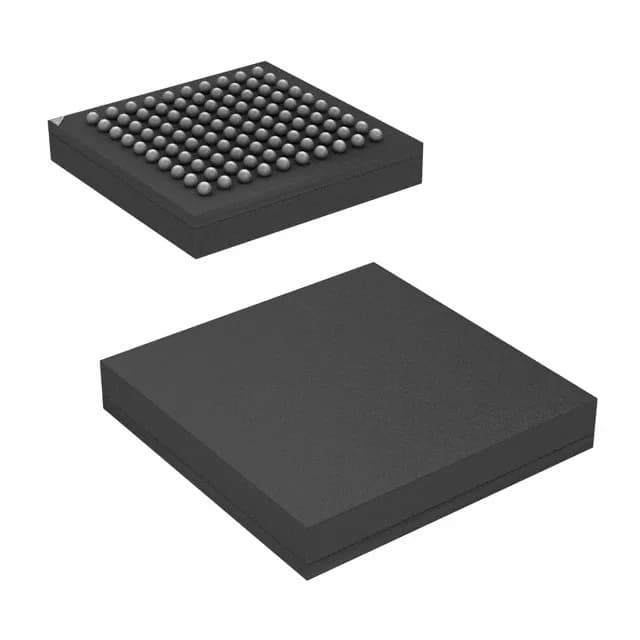

Cypress CYUSB3314-BVXI USB 3.0 Hub Controller, HX3 Series

MPNCYUSB3314-BVXI
End of Life

Cypress HX3 series CYUSB3314-BVXI USB 3.0 hub controller, 4-port, ARM Cortex-M0 core, 16K x 8 RAM, ROM (32kB) program memory, I2C interface, 10 I/O, 1.14V–1.26V / 2.5V–2.7V / 3V–3.6V supply, -40°C to 85°C, 100-VFBGA (6x6 mm), Tray.

$11.35Ref. price · indicative, final on quote
CYUSB3314-BVXI datasheet
Packaging100-VFBGA
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

CYUSB3314-BVXI Technical Specifications
ParameterValue
SeriesHX3
Mounting typeSurface Mount
Controller seriesCYUSB
Program memory typeROM (32kB)
Voltage1.14V ~ 1.26V, 2.5V ~ 2.7V, 3V ~ 3.6V
InterfaceI2C
Operating temperature-40°C ~ 85°C (TA)
PackageTray
RAM size16K x 8
ApplicationsUSB 3.0 Hub Controller
Number of i (O)10
Core processorARM® Cortex®-M0
Case100-VFBGA

Product details

Four-port USB 3.0 hub with on-chip management

The Cypress CYUSB3314-BVXI is a 4-port USB 3.0 hub controller from the HX3 series, built around an ARM Cortex-M0 core. It integrates the hub repeater, upstream facing port, and four downstream facing ports into a single 100-VFBGA package. The on-chip ROM (32 kB) holds the hub firmware; the 16K x 8 RAM supports per-port status and descriptor tables. An I2C interface allows an external host or EEPROM to override default configuration — useful for custom vendor IDs, port power sequencing, or compound-device descriptors.

Lifecycle and sourcing

For a BOM line that needs a USB 3.0 hub controller with an ARM core and I2C configuration, this part is a current-design fit.

Frequently asked questions

What is the replacement for CYUSB3314-BVXI?

No direct replacement is listed. The CYUSB3314-BVXI is the current active HX3 4-port hub controller. The CYPD2122-24LQXIT is a different device (USB Type-C controller with flash memory), not a functional substitute for a USB 3.0 hub.

Can CYUSB3314-BVXI be used in commercial temperature?

Yes. Its -40°C to 85°C rating covers commercial (0°C to 70°C) environments with margin. It is also suitable for industrial and outdoor telecom enclosures.
