Infineon Technologies CYUSB2304-68LTXIT — Discrete Semiconductors
Infineon Technologies

Cypress CYUSB2304-68LTXIT USB 2.0 Hub Controller, 4-Port

MPNCYUSB2304-68LTXIT
End of Life

Cypress HX3 series CYUSB2304-68LTXIT, USB 2.0 Hub Controller, 4-Port, ARM Cortex-M0 core, I²C interface, 16K x 8 RAM, ROM (32kB), 1.14V–3.6V supply, -40°C to 85°C, 68-VFQFN Exposed Pad.

$5.97Ref. price · indicative, final on quote
CYUSB2304-68LTXIT datasheet

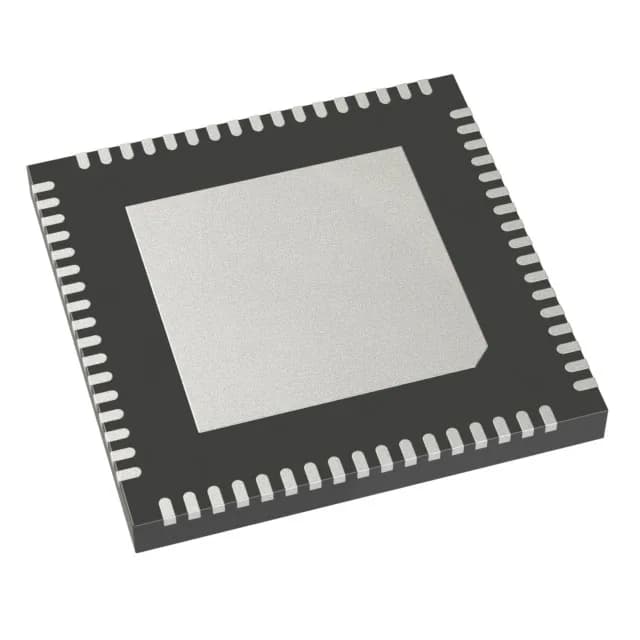

Packaging68-VFQFN Exposed Pad
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

CYUSB2304-68LTXIT Technical Specifications
ParameterValue
SeriesHX3
Mounting typeSurface Mount
Controller seriesCYUSB
Program memory typeROM (32kB)
Voltage1.14V ~ 1.26V, 2.5V ~ 2.7V, 3V ~ 3.6V
InterfaceI²C
Operating temperature-40°C ~ 85°C (TA)
PackageTape & Reel (TR); Cut Tape (CT)
RAM size16K x 8
ApplicationsUSB 2.0 Hub Controller
Number of i (O)10
Core processorARM® Cortex®-M0
Case68-VFQFN Exposed Pad

Product details

What this hub controller does on your board

The Cypress CYUSB2304-68LTXIT is a 4-port USB 2.0 hub controller from the HX3 series, built around an ARM Cortex-M0 core. It handles upstream port negotiation, downstream port power management, and status reporting over an I²C interface. The 16K x 8 RAM and 32 kB ROM (program memory) support the hub's internal firmware and configuration storage.

I²C interface — what it is for and what it is not

The I²C interface on this hub is for configuration and status readback — setting port power switching, overcurrent response, and reading device status. It is not a general-purpose expansion bus for external peripherals; the 10 I/O lines are dedicated to hub control functions (port indicators, overcurrent detect, reset).

Frequently asked questions

Does CYUSB2304-68LTXIT have an I2C interface?

Yes, it includes an I²C interface used for configuration and status readback.

Is CYPD2122-24LQXIT a drop-in replacement for CYUSB2304-68LTXIT?

No. The CYPD2122-24LQXIT shares the same ARM Cortex-M0 core and I²C interface but targets USB Type-C power delivery applications. It is not a functional second-source for a USB 2.0 hub controller.
