Diodes Incorporated — Logic ICs

Diodes Incorporated Logic ICs — 14 part numbers with specifications and datasheets. Filter by key specs and request a quote on ICBOMS.

Base Product Number

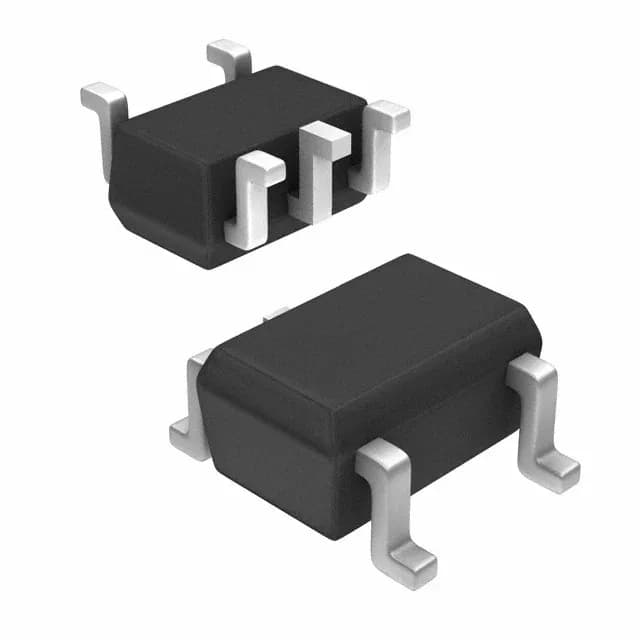

74AHC1G00 · 74AHC1G02 · 74AHC1G04 · 74AHC1G08
Max Propagation Delay @ V, Max CL
7.5ns @ 5V, 50pF · 7.9ns @ 5V, 50pF · 10.6ns @ 5V, 50pF · 8.8ns @ 5V, 50pF
Supplier Device Package
SOT-89-3 · SOT-353 · SOT-25 · 16-SO
Package / Case
TO-243AA · 5-TSSOP, SC-70-5, SOT-353 · SC-74A, SOT-753 · 16-SOIC (0.154", 3.90mm Width)
Input Logic Level - Low
0.5V ~ 1.65V · 0.9V ~ 1.65V · 0.3V ~ 1.1V · 0.5V ~ 1.8V
Current - Output High, Low
8mA, 8mA · -, 4mA · 6mA, 6mA · 4mA, 4mA
Input Logic Level - High
1.5V ~ 3.85V · 2.2V ~ 3.85V · 1.7V ~ 4.4V · 1.5V ~ 4.2V
Logic Type
NAND Gate · NOR Gate · Inverter · AND Gate
