LM25061PMME-2/NOPB
Texas Instruments
Surface MountTape & Reel (TR); Cut Tape (CT)-40°C ~ 85°C
Ref. price$4.09
Lead time on requestGet quote
Texas Instruments LM25 Analog Series
12 variants · Texas Instruments
About the Texas Instruments LM25 Analog Series
The Texas Instruments LM25 Analog Series series groups 12 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Variants differ by case, mounting and operating temperature, so you can match the exact case your application requires using the selection guide below. All listed Texas Instruments LM25 Analog Series part numbers are active and orderable.
Select a variant by
- Case
- 8-DIP (0.300\", 7.62mm) · 8-PowerTSSOP, 8-MSOP (0.118\", 3.00mm Width) · 8-SOIC (0.154\", 3.90mm Width) · 8-TSSOP, 8-MSOP (0.118\", 3.00mm Width) · 8-WFDFN Exposed Pad · 10-TFSOP, 10-MSOP (0.118\", 3.00mm Width) · 16-PowerTSSOP (0.173\", 4.40mm Width) · 24-WFQFN Exposed Pad · TO-99-8 Metal Can
- Mounting
- Surface Mount · Through Hole
- Operating temperature
- -55°C ~ 125°C · -40°C ~ 85°C · -40°C ~ 125°C (TJ) · -25°C ~ 85°C · -25°C ~ 85°C (TA)
- Package
- Bulk · Tape & Reel (TR); Cut Tape (CT) · Tube
- Frequency
- 50kHz ~ 1MHz · 150kHz · Up to 1MHz · Up to 750kHz
- Output type
- Adjustable · Transistor Driver
- Synchronous rectifier
- No · Yes
- Clock sync
- No · Yes
Variant comparison

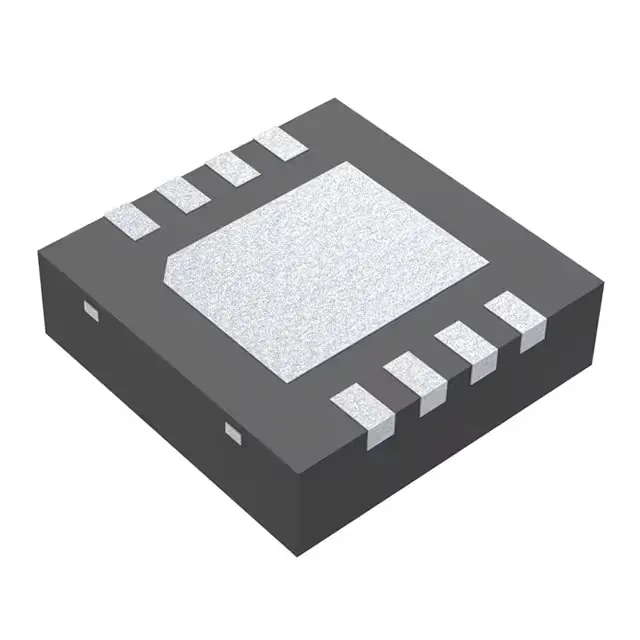

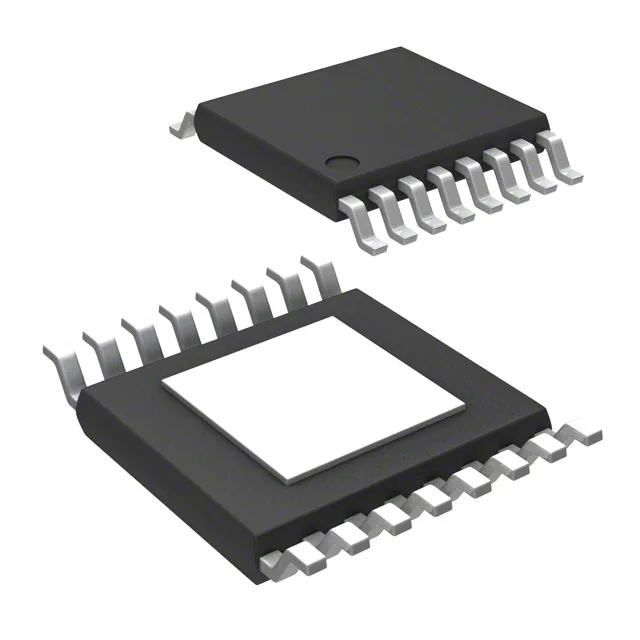

| Parameter | LM25061PMME-2/NOPB | LM25069PMM-2/NOPB | LM25085AMY/NOPB | LM25085ASDE/NOPB | LM25085MM/NOPB | LM25088MH-1/NOPB |
|---|---|---|---|---|---|---|
| Case | 10-TFSOP, 10-MSOP (0.118\", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118\", 3.00mm Width) | 8-PowerTSSOP, 8-MSOP (0.118\", 3.00mm Width) | 8-WFDFN Exposed Pad | 8-TSSOP, 8-MSOP (0.118\", 3.00mm Width) | 16-PowerTSSOP (0.173\", 4.40mm Width) |
| Mounting | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tube |
| Frequency | — | — | Up to 1MHz | Up to 1MHz | Up to 1MHz | 50kHz ~ 1MHz |
| Output type | — | — | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver |
| Synchronous rectifier | — | — | No | No | No | No |
| Clock sync | — | — | No | No | No | Yes |
Request a quote on any Texas Instruments LM25 Analog Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
