DS90LV001TLD/NOPB
Texas Instruments
3V ~ 3.6VTape & Reel (TR); Cut Tape (CT)-40°C~85°C
Ref. price$2.5100
Lead time on requestGet quote ›
Texas Instruments DS90 Series
10 variants · Texas Instruments
About the Texas Instruments Texas Instruments DS90 Series series
The Texas Instruments Texas Instruments DS90 Series series groups 10 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Variants differ by package, case and data rate, so you can match the exact package your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current Texas Instruments DS90 Series variants and discontinued ones from a single page.
Select a variant by
- Package
- Bulk · Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT) · Tube
- Case

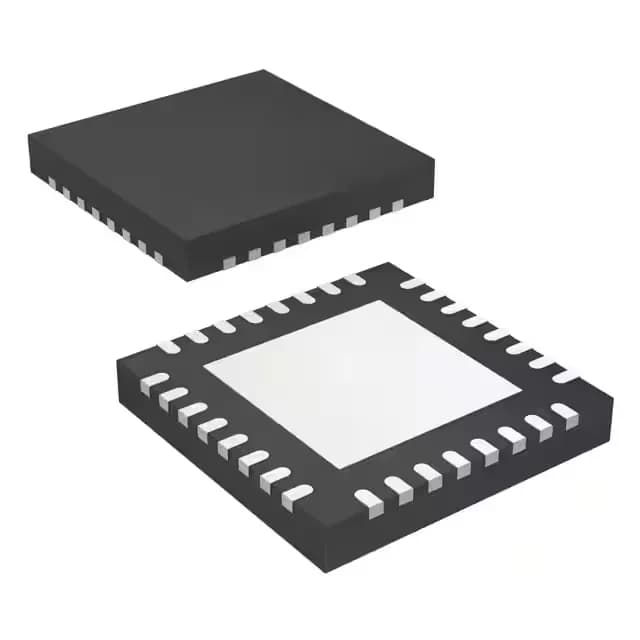

- 8-SOIC (0.154\", 3.90mm Width) · 8-WFDFN Exposed Pad · 32-WFQFN Exposed Pad · SC-74A, SOT-753
- Data rate
- 400Mbps · 800Mbps
- Operating temperature
- -40°C ~ 85°C · -40°C~85°C
- Type
- Buffer, ReDriver · Driver · Receiver
- Voltage
- 3V ~ 3.6V · 3.15V ~ 3.45V
- Current - supply
- 47mA · 117mA
Variant comparison
| Parameter | DS90LV001TLD/NOPB | DS90LV001TM/NOPB | DS90LV001TMX/NOPB | DS90LV011ATMFX/NOPB | DS90LV028ATMX | DS90LV028ATMX-TI |
|---|---|---|---|---|---|---|
| Package | Tape & Reel (TR); Cut Tape (CT) | Tube | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Bulk |
| Case | 8-WFDFN Exposed Pad | 8-SOIC (0.154\", 3.90mm Width) | 8-SOIC (0.154\", 3.90mm Width) | SC-74A, SOT-753 | 8-SOIC (0.154\", 3.90mm Width) | — |
| Data rate | 800Mbps | 800Mbps | 800Mbps | 400Mbps | 400Mbps | — |
| Operating temperature | -40°C~85°C | -40°C~85°C | -40°C~85°C | -40°C ~ 85°C | -40°C~85°C | — |
| Type | Buffer, ReDriver | Buffer, ReDriver | Buffer, ReDriver | Driver | Receiver | — |
| Voltage | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | — |
| Current - supply | 47mA | 47mA | 47mA | — | — | — |
Request a quote on any Texas Instruments DS90 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Texas Instruments Texas Instruments DS90 Series variants differ?
- Texas Instruments DS90 Series part numbers differ by package, case, data rate and operating temperature. Use the selection guide above to pick by package.
- How many Texas Instruments Texas Instruments DS90 Series part numbers are listed?
- 10 Texas Instruments Texas Instruments DS90 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Texas Instruments Texas Instruments DS90 Series?
- Request a quote (RFQ) for any Texas Instruments DS90 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
