TDK Corporation ACM7060-701-2PL-TL01 — EMI Filters & Ferrite Beads
Technical Documents PDF / CAD
Download Datasheet (PDF) Preview ↓
RoHS Compliant · Lead-Free EIA-481 Standard
TDK Corporation / EMI Filters & Ferrite Beads

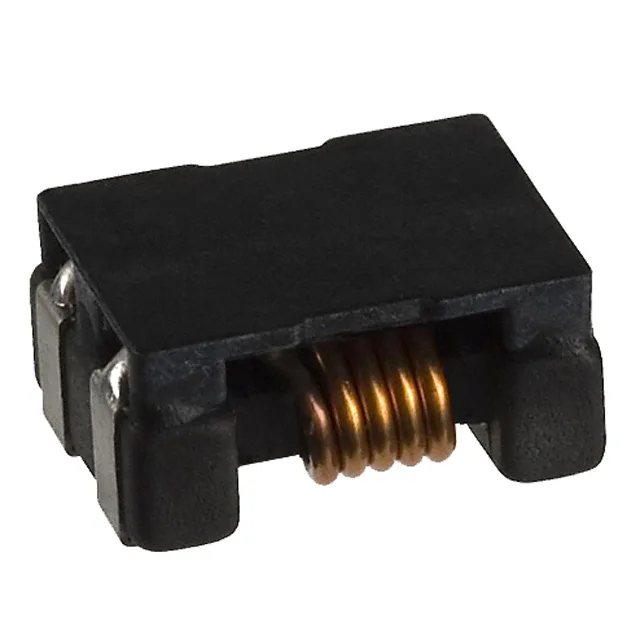

TDK ACM7060-701-2PL-TL01 Common Mode Choke

MPN ACM7060-701-2PL-TL01
Active Spot Stock · 24-48h Dispatch 100% Original Sealed

TDK Corporation ACM series common mode filter, ACM7060-701-2PL-TL01, power line, 700 Ohms @ 100 MHz, 4 A, 80 VDC, 15 mOhm DCR, horizontal 4-pad SMD, -40 to 85 °C.

In Stock: 3,720 pcs
MOQ: 1 pcs
Logistics: DHL / FedEx DAP (Global Express · 3-7d) Russia & CIS DDP (Door-to-Door Cleared)
Dispatch: Shenzhen / HK
Unit Price (USD)
$1.01 / pc
Direct Purchase Ready
Volume Pricing Breaks Confirmed upon quotation
1+ pcs
$1.01
10+ pcs
$0.86
30+ pcs
$0.74
100+ pcs
$0.65
500+ pcs
$0.62
1,500+ pcs
$0.61
Working on a production BOM or have a target unit price? Submit Target Price
Buy Now

$1.01 / ea

3,720 in stock — maximum per order · 3–4 days lead time

$0.86 / ea from 10 pcs
Upload Full BOM List
100% Original Sealed 45x Microscope QC 30-Day Warranty · COC USD T/T & PI · DAP/DDP

Full Technical Specifications

13 Parameters
ACM7060-701-2PL-TL01 specifications
Parameter / AttributeSpecification / Value
SeriesACM
Filter typePower Line
MountingSurface Mount
Voltage rating - DC80V
Current rating4A
Impedance @ frequency700 Ohms @ 100 MHz
Operating temperature-40°C ~ 85°C
Height0.138\" (3.50mm)
Size (Dimension)0.276\" L x 0.236\" W (7.00mm x 6.00mm)
PackageTape & Reel (TR) Cut Tape (CT)
CaseHorizontal, 4 PC Pad
Number of lines2
DC resistance (DCR)15mOhm
[DESK] Shenzhen Spot Allocation · 2h Response

Need Immediate Spot Stock or Shortage Allocation for ACM7060-701-2PL-TL01?

Factory lead times blocking production? We lock verified brand-new original stock in Shenzhen within 2 hours.

Quote SLA 2 Hours
[01] Emergency Shortage 24-48h Shenzhen Dispatch

Direct access to Shenzhen floor inventory, franchised allocation buffers, and factory bonded stock to resolve line-down shutdowns.

[02] Industrial Packaging Tape & Reel / Tray / Tube

Standard factory-sealed packaging compliant with EIA-481 standards for automated high-speed SMT pick-and-place lines.

[03] WhatsApp QC Proof 45x Microscope QC Photos

High-resolution photos of original reel labels, 2D DataMatrix, and pin coplanarity sent via WhatsApp/Telegram before you release wire payment.

● USD Wire Transfer (SWIFT T/T) · DAP Express / DDP Delivery
WhatsApp Inquiry Request Spot Quote

Technical Details & Description

Common-mode choke for DC power rails

The TDK ACM7060-701-2PL-TL01 is a two-line common-mode choke from the ACM series, designed to suppress conducted EMI on a DC power input pair. It delivers 700 Ohms of common-mode impedance at 100 MHz, the typical attenuation peak for switching noise from a buck converter or a motor drive's DC link. The 80 VDC voltage rating gives headroom above 48 V telecom supplies and 24 V industrial buses.

Board-fit and thermal envelope

The 15 mOhm DCR means self-heating at 4 A is about 240 mW — well within the package's thermal budget even in still air. No forced airflow required for the rated current.

Frequently asked questions

What is the common-mode impedance at 100 MHz for this choke?

The ACM7060-701-2PL-TL01 provides 700 Ohms of common-mode impedance at 100 MHz, which is the typical frequency where conducted emissions from a switching regulator peak.

What DC voltage and current can this filter handle?

It is rated for 80 VDC and 4 A continuous current, with a maximum DC resistance of 15 mOhm. This suits 24 V and 48 V power rails with margin.
