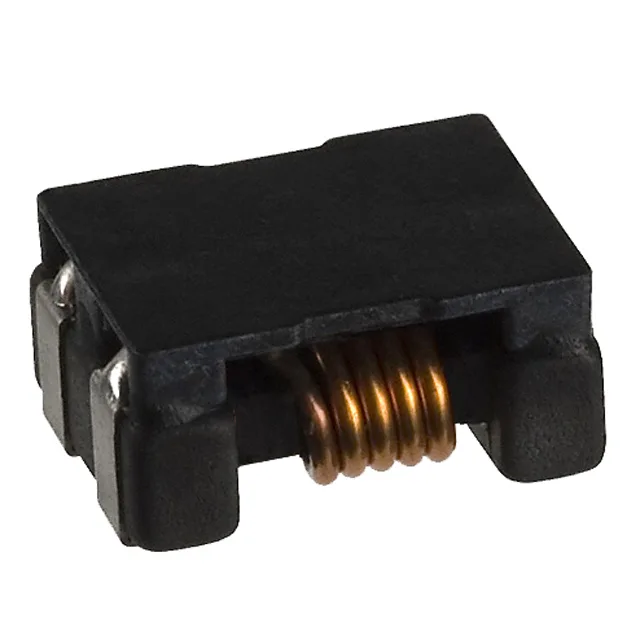

TDK Corporation ACM7060-301-2PL-TL01 — EMI Filters & Ferrite Beads

TDK ACM7060-301-2PL-TL01 Power Line Filter, 300 Ω, 5 A

MPNACM7060-301-2PL-TL01
Active

TDK Corporation ACM series common-mode choke, ACM7060-301-2PL-TL01, power line filter, 300 Ω @ 100 MHz, 5 A, 80 VDC, 10 mOhm DCR, horizontal 4-pad SMD.

$1.8400Ref. price · indicative, final on quote
TDK Corporation ACM7060-301-2PL-TL01 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

ACM7060-301-2PL-TL01 specifications
ParameterValue
SeriesACM
Filter typePower Line
MountingSurface Mount
Voltage rating - DC80V
Current rating5A
Impedance @ frequency300 Ohms @ 100 MHz
Operating temperature-40°C~85°C
Height0.138\" (3.50mm)
Size (Dimension)0.276\" L x 0.236\" W (7.00mm x 6.00mm)
PackageTape & Reel (TR); Cut Tape (CT)
CaseHorizontal, 4 PC Pad
Number of lines2
DC resistance (DCR)10mOhm

Product details

Power-line common-mode suppression for DC rails

The TDK ACM7060-301-2PL-TL01 is a 2-line common-mode choke from the ACM series, designed to filter conducted EMI on DC power buses. It presents 300 Ω of impedance at 100 MHz, which is where most switching-regulator noise peaks — the choke knocks down common-mode currents before they radiate off the cable or PCB edge. The 80 VDC rating gives headroom for 48 V telecom buses and 60 V automotive transient peaks.

The footprint is standard for power-line common-mode chokes — four pads, two per winding, with the core sitting flat on the board. No special keep-out zone required, but keep the choke away from low-level analog traces to avoid coupling the suppressed noise into sensitive nodes.

Frequently asked questions

What is the impedance of ACM7060-301-2PL-TL01 at 100 MHz?

The choke provides 300 Ω of common-mode impedance at 100 MHz, which is the typical frequency range for conducted EMI from switching power supplies.

What is the maximum DC current and resistance for ACM7060-301-2PL-TL01?

Rated for 5 A continuous current with a maximum DCR of 10 mOhm per line. The low resistance minimizes I²R losses in power delivery.
