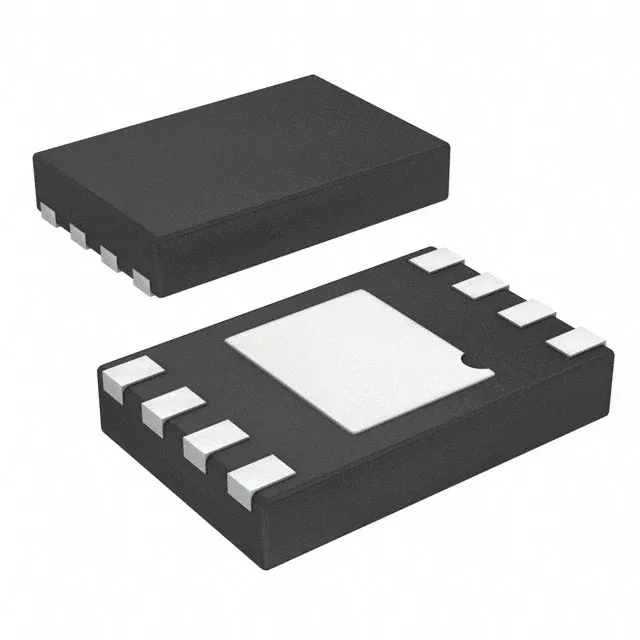

ROHM Semiconductor BU7462NUX-TR CMOS operational amplifier, dual circuit, 1 MHz gain bandwidth, 1V/µs slew rate, 1.7-5.5 V supply, VSON008X2030 package, Tape & Reel.
| Parameter | Value |
|---|---|
| Mounting type | Surface Mount |
| Amplifier type | CMOS |
| Voltage - input offset | 1 mV |
| Voltage - supply span | 5.5 V |
| Current - supply | 300µA |
| Current - input bias | 1 pA |
| Current - output (Channel) | 12 mA |
| Operating temperature | -40°C ~ 85°C |
| Gain bandwidth product | 1 MHz |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Slew rate | 1V/µs |
| Case | 8-UFDFN Exposed Pad |
| Number of circuits | 2 |
The BU7462NUX-TR: The 1 pA typical input bias current and 1 mV input offset voltage keep DC errors low, important for precision sensor interfaces or high-impedance front-ends where bias current drift would otherwise dominate the error budget.
